5 Click OK to confirm the import.

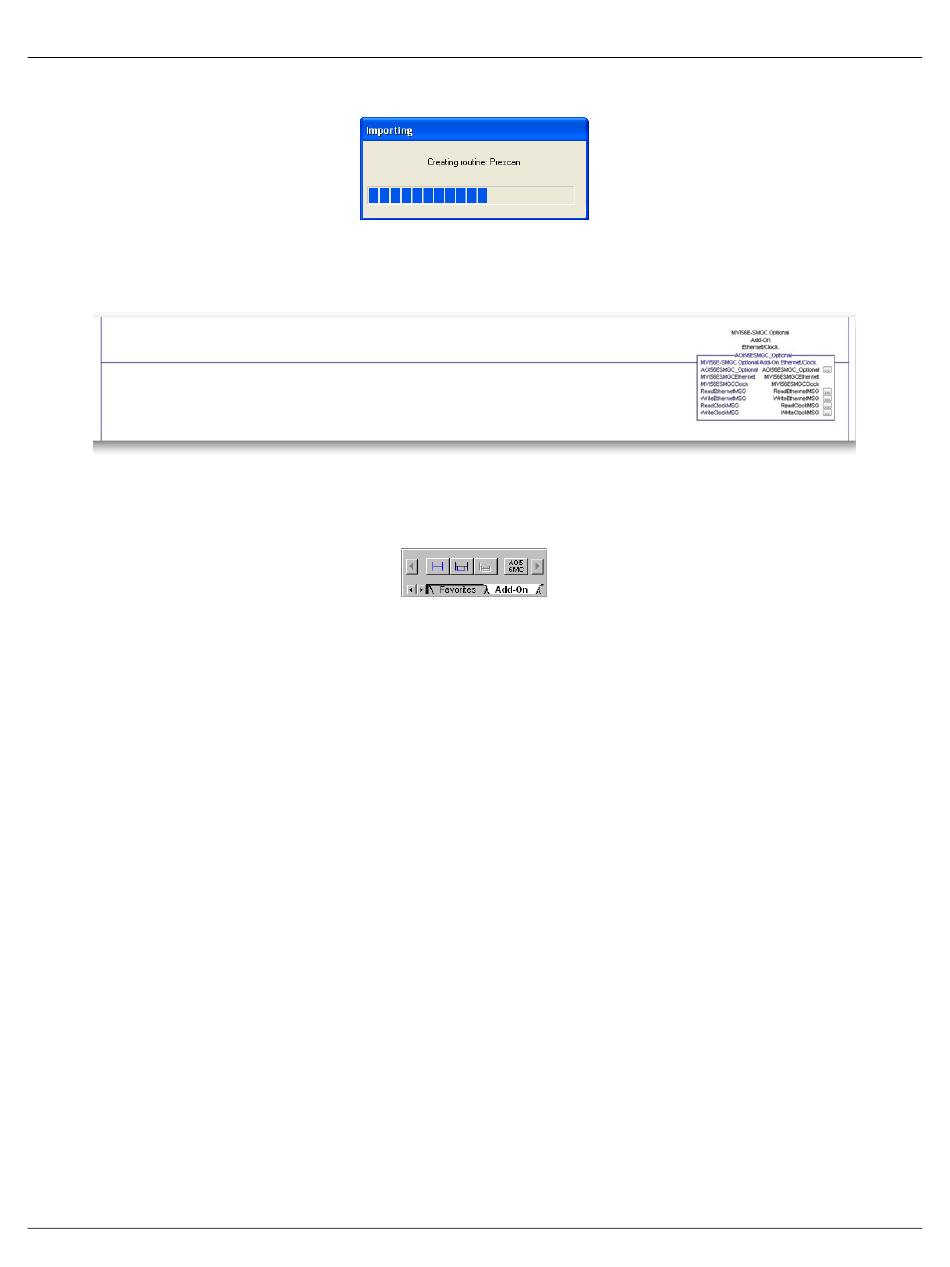

When the import is completed, the new rung with the Add-On Instruction appears as
shown in the following illustration.
The procedure also imports the new User Defined Data Types, Controller Tags, and
the Add-On instruction for your project.
6 Save the application and then download the sample ladder logic to the processor.
