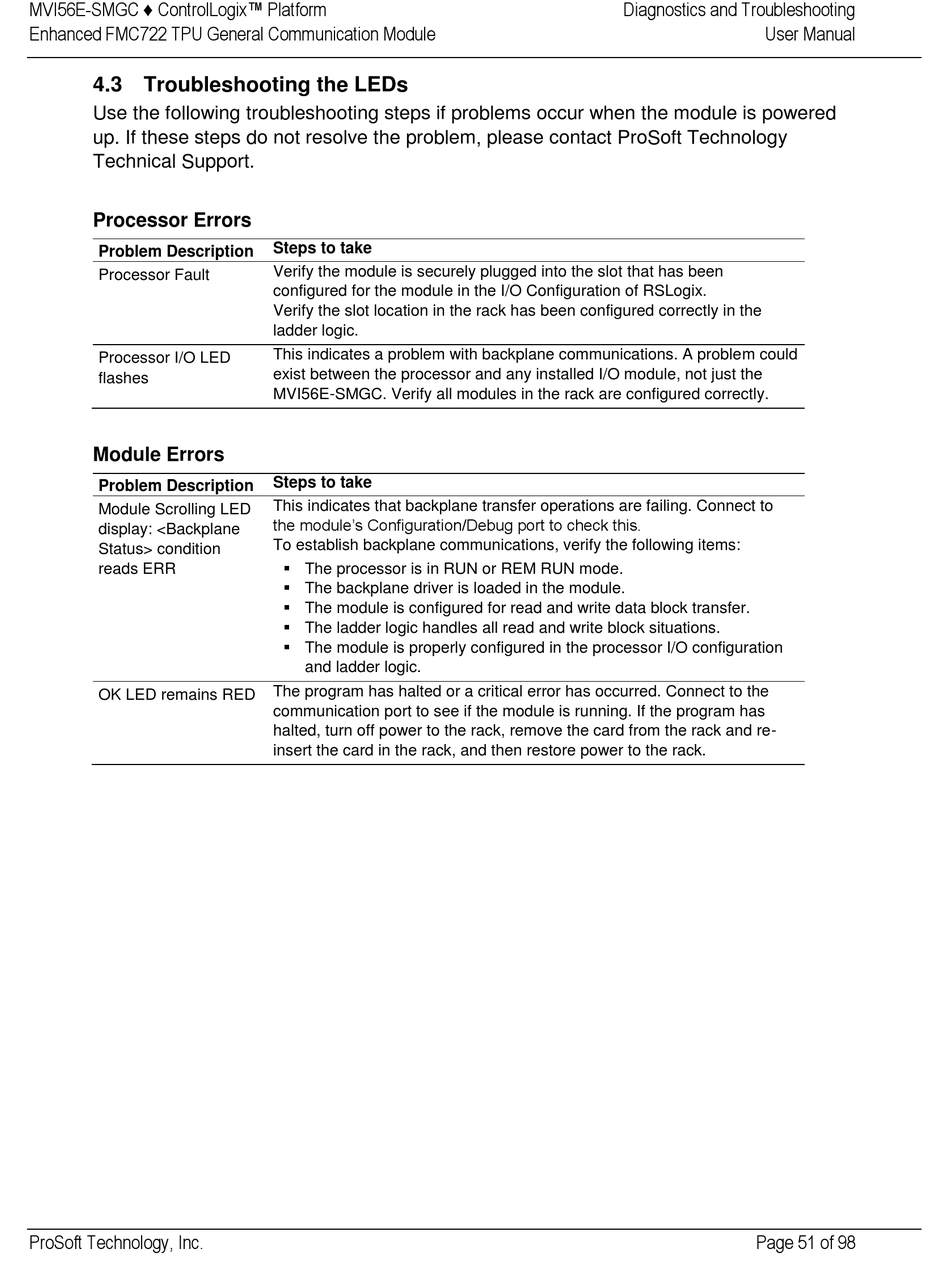

4.3 Troubleshooting the LEDs

Use the following troubleshooting steps if problems occur when the module is powered
up. If these steps do not resolve the problem, please contact ProSoft Technology
Technical Support.
Processor Errors
Problem Description
Processor Fault
Processor I/O LED
flashes
Module Errors
Problem Description
Module Scrolling LED
display: <Backplane
Status> condition
reads ERR
OK LED remains RED
ProSoft Technology, Inc.
Steps to take
Verify the module is securely plugged into the slot that has been
configured for the module in the I/O Configuration of RSLogix.
Verify the slot location in the rack has been configured correctly in the
ladder logic.
This indicates a problem with backplane communications. A problem could
exist between the processor and any installed I/O module, not just the
MVI56E-SMGC. Verify all modules in the rack are configured correctly.
Steps to take
This indicates that backplane transfer operations are failing. Connect to
the module's Configuration/Debug port to check this.
To establish backplane communications, verify the following items:
 The processor is in RUN or REM RUN mode.
 The backplane driver is loaded in the module.
 The module is configured for read and write data block transfer.
 The ladder logic handles all read and write block situations.
 The module is properly configured in the processor I/O configuration
and ladder logic.
The program has halted or a critical error has occurred. Connect to the
communication port to see if the module is running. If the program has
halted, turn off power to the rack, remove the card from the rack and re-
insert the card in the rack, and then restore power to the rack.
