ProSoft Technology ControlLogix MVI56E-SMGC User Manual page 26

MVI56E-SMGC ♦ ControlLogix™ Platform
Enhanced FMC722 TPU General Communication Module

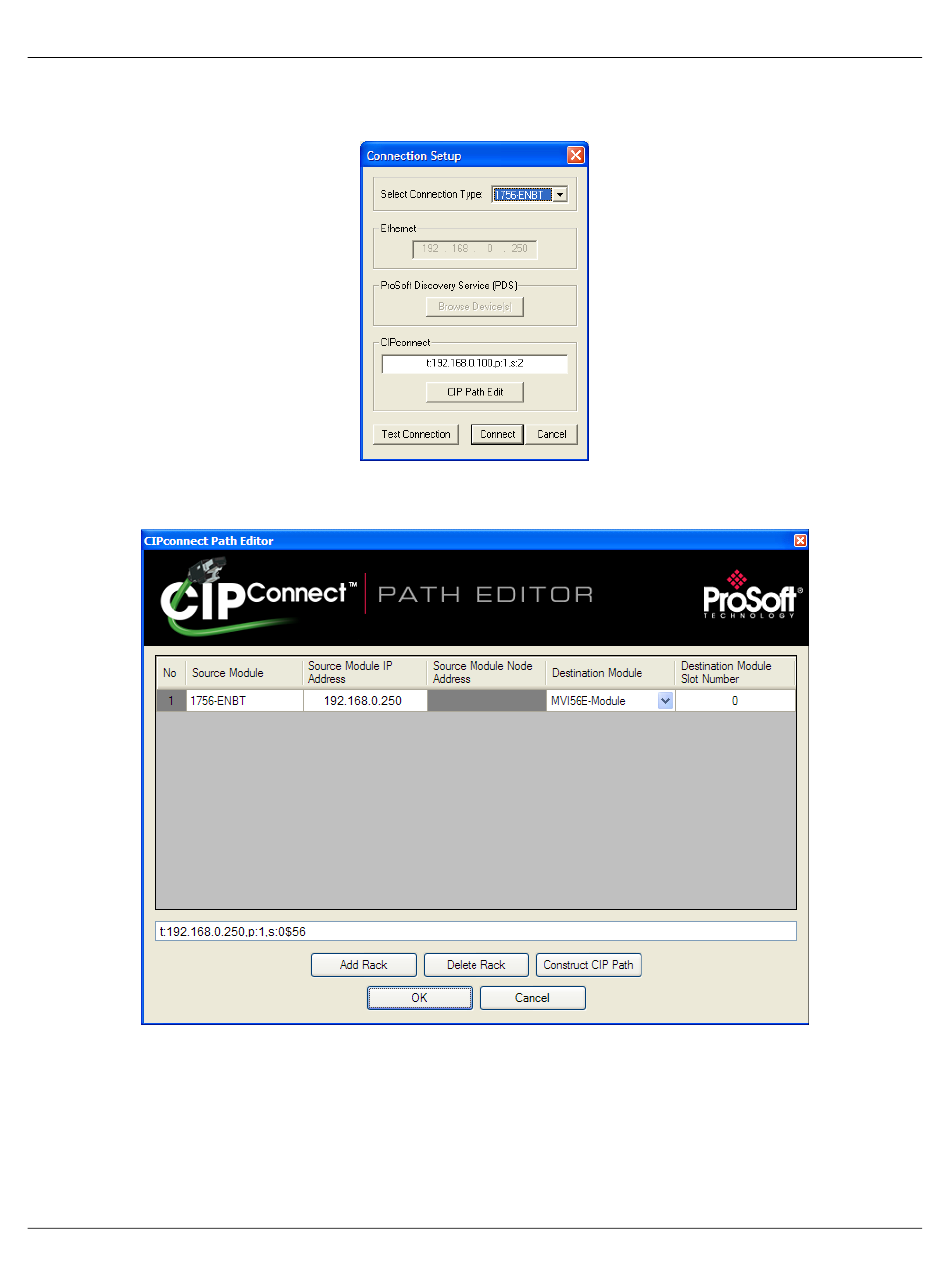

3 In the Select Connection Type dropdown list, choose 1756-ENBT. The default path
appears in the text box, as shown in the following illustration.
4 Click CIP P
The CIPconnect Path Editor allows you to define the path between the PC and the
MVI56E-SMGC module. The first connection from the PC is always a 1756-ENBT
(Ethernet/IP) module.
ProSoft Technology, Inc.
E to open the CIPconnect Path Editor dialog box.
ATH DIT
MVI56E-SMGC Configuration
User Manual
Page 26 of 98
