MVI56E-SMGC ♦ ControlLogix™ Platform
Enhanced FMC722 TPU General Communication Module

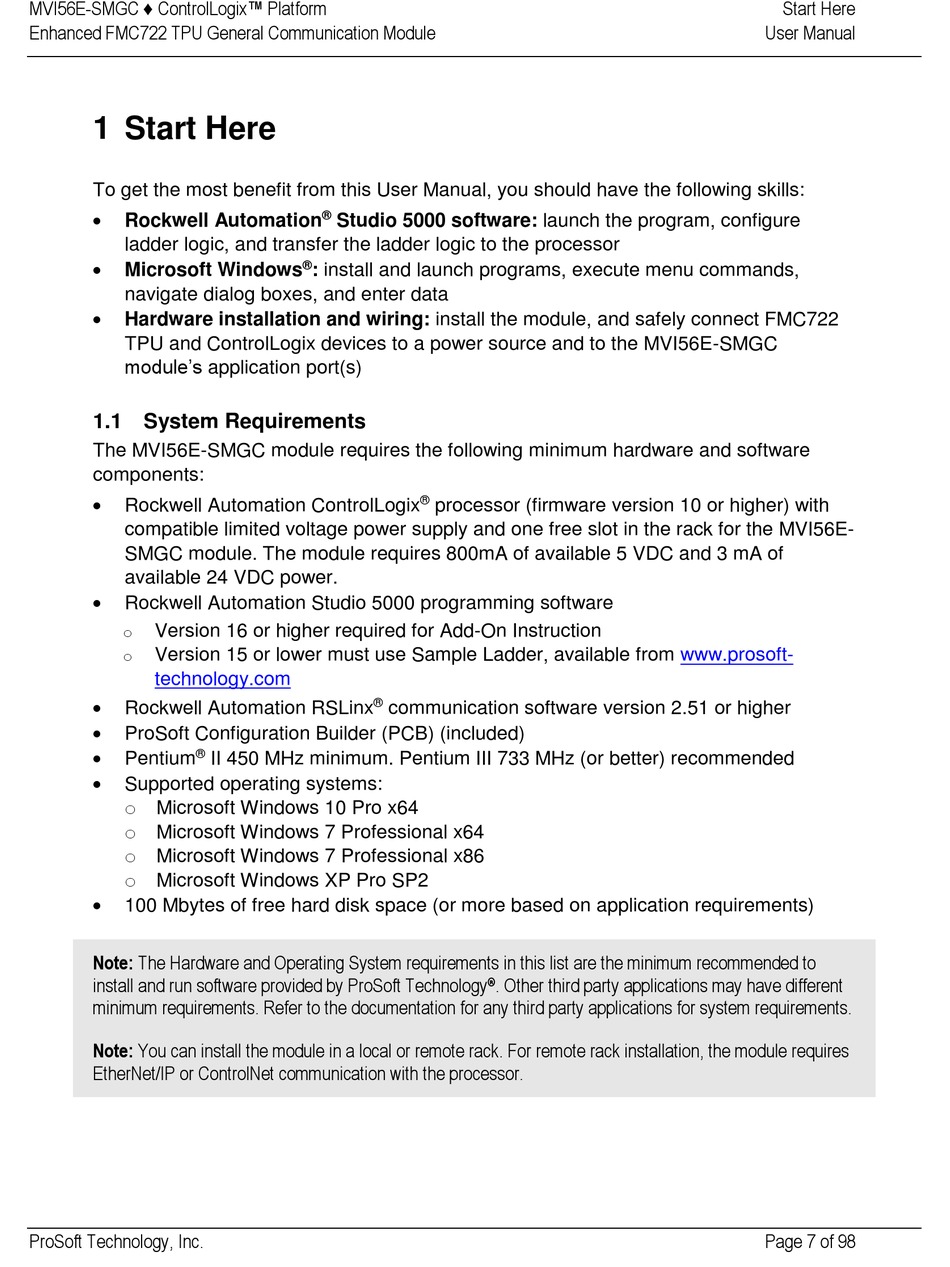

1 Start Here

To get the most benefit from this User Manual, you should have the following skills:

Rockwell Automation
ladder logic, and transfer the ladder logic to the processor

Microsoft Windows
navigate dialog boxes, and enter data

Hardware installation and wiring: install the module, and safely connect FMC722
TPU and ControlLogix devices to a power source and to the MVI56E-SMGC
module's application port(s)

1.1 System Requirements

The MVI56E-SMGC module requires the following minimum hardware and software
components:

Rockwell Automation ControlLogix
compatible limited voltage power supply and one free slot in the rack for the MVI56E-
SMGC module. The module requires 800mA of available 5 VDC and 3 mA of
available 24 VDC power.

Rockwell Automation Studio 5000 programming software
Version 16 or higher required for Add-On Instruction
o
Version 15 or lower must use Sample Ladder, available from
o
technology.com

Rockwell Automation RSLinx

ProSoft Configuration Builder (PCB) (included)

®
Pentium

Supported operating systems:
o Microsoft Windows 10 Pro x64
o Microsoft Windows 7 Professional x64
o Microsoft Windows 7 Professional x86
o Microsoft Windows XP Pro SP2

100 Mbytes of free hard disk space (or more based on application requirements)
Note: The Hardware and Operating System requirements in this list are the minimum recommended to
install and run software provided by ProSoft Technology
minimum requirements. Refer to the documentation for any third party applications for system requirements.
Note: You can install the module in a local or remote rack. For remote rack installation, the module requires
EtherNet/IP or ControlNet communication with the processor.
ProSoft Technology, Inc.
®
Studio 5000 software: launch the program, configure
®
: install and launch programs, execute menu commands,
®
communication software version 2.51 or higher
II 450 MHz minimum. Pentium III 733 MHz (or better) recommended
®
processor (firmware version 10 or higher) with
. Other third party applications may have different
®
Start Here
User Manual
www.prosoft-
Page 7 of 98
