5.4.3 Selecting the Slot Number for the Module

The sample application is for a module installed in Slot 1 in a ControlLogix rack. The
ladder logic uses the slot number to identify the module. If you are installing the module
in a different slot, you must update the ladder logic so that program tags and variables
are correct, and do not conflict with other modules in the rack.
To change the slot number
1

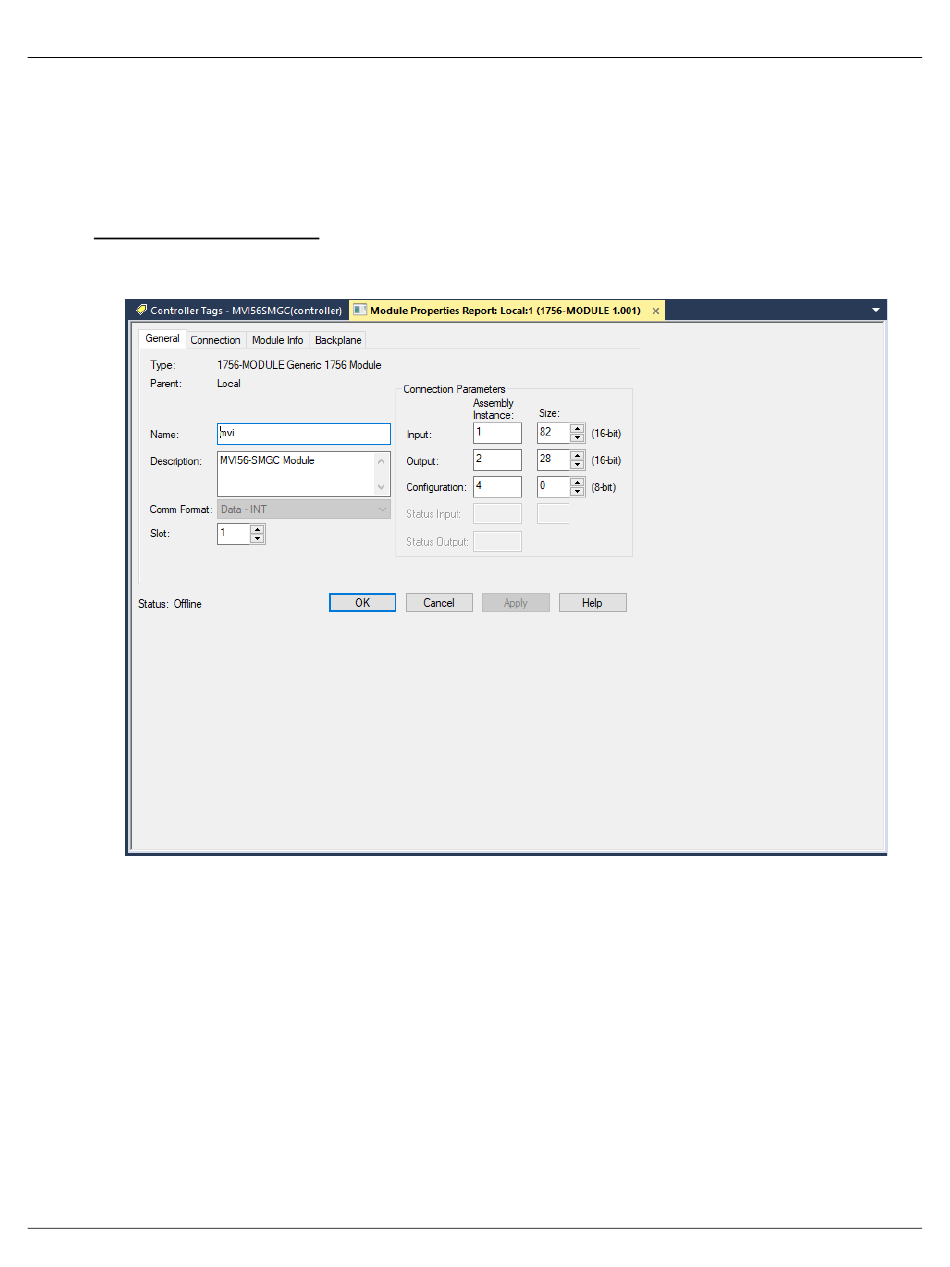

In the Controller Organizer list, right-click the module and then choose P
This action opens the Module Properties dialog box.
2
In the S
LOT
the slot number where the module will reside in the rack, and then click OK.
RSLogix will automatically apply the slot number change to all tags, variables and ladder
logic rungs that use the MVI56E-SMGC slot number for computation.
