1 In PCB, right-click D
M T
ODULE

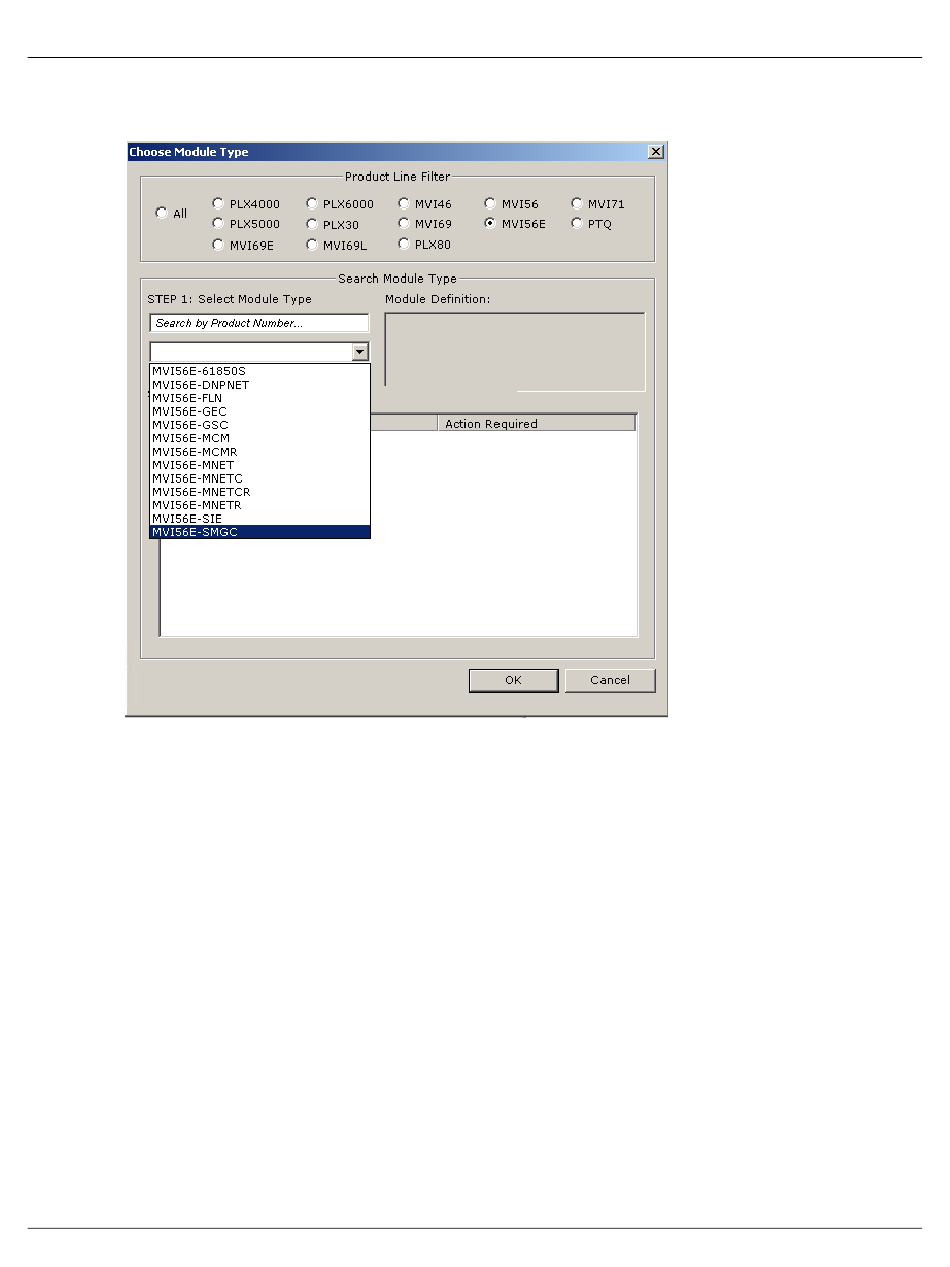

2 In the Product Line Filter area of the dialog box, select MVI56E. In the Select Module
Type dropdown list, select MVI56E-SMGC, and then click OK to save your settings
and return to the ProSoft Configuration Builder window.
