MVI56E-SMGC ♦ ControlLogix™ Platform
Enhanced FMC722 TPU General Communication Module

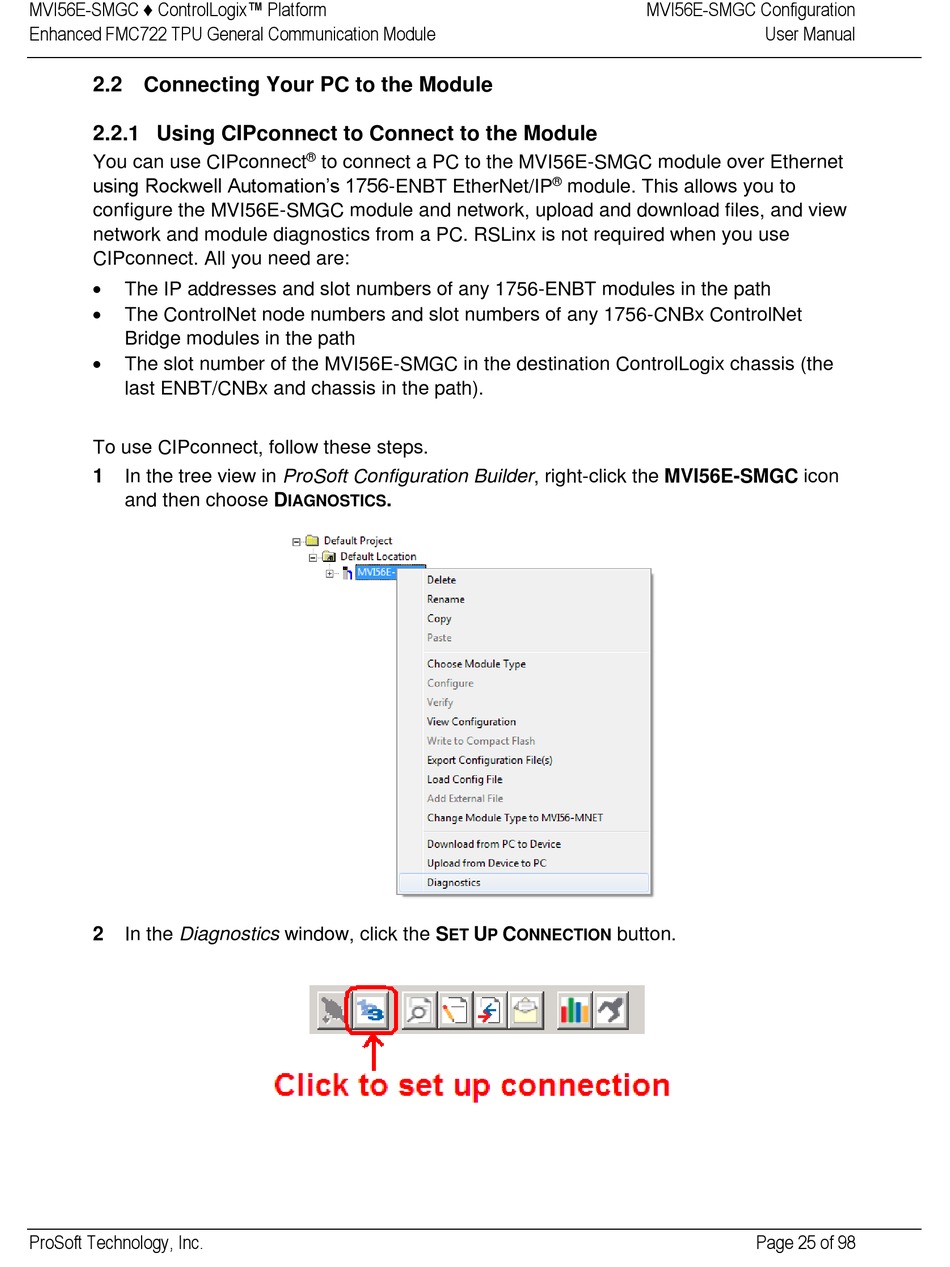

2.2 Connecting Your PC to the Module

2.2.1 Using CIPconnect to Connect to the Module

You can use CIPconnect
using Rockwell Automation's 1756-ENBT EtherNet/IP
configure the MVI56E-SMGC module and network, upload and download files, and view
network and module diagnostics from a PC. RSLinx is not required when you use
CIPconnect. All you need are:

The IP addresses and slot numbers of any 1756-ENBT modules in the path

The ControlNet node numbers and slot numbers of any 1756-CNBx ControlNet
Bridge modules in the path

The slot number of the MVI56E-SMGC in the destination ControlLogix chassis (the
last ENBT/CNBx and chassis in the path).
To use CIPconnect, follow these steps.
1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-SMGC icon
and then choose D
2 In the Diagnostics window, click the S
ProSoft Technology, Inc.
®
to connect a PC to the MVI56E-SMGC module over Ethernet
.
IAGNOSTICS
ET
MVI56E-SMGC Configuration
®
module. This allows you to
U C button.
P ONNECTION
User Manual
Page 25 of 98
