3.1.4 Command Response Data (SMGC_0104_CmdResp)

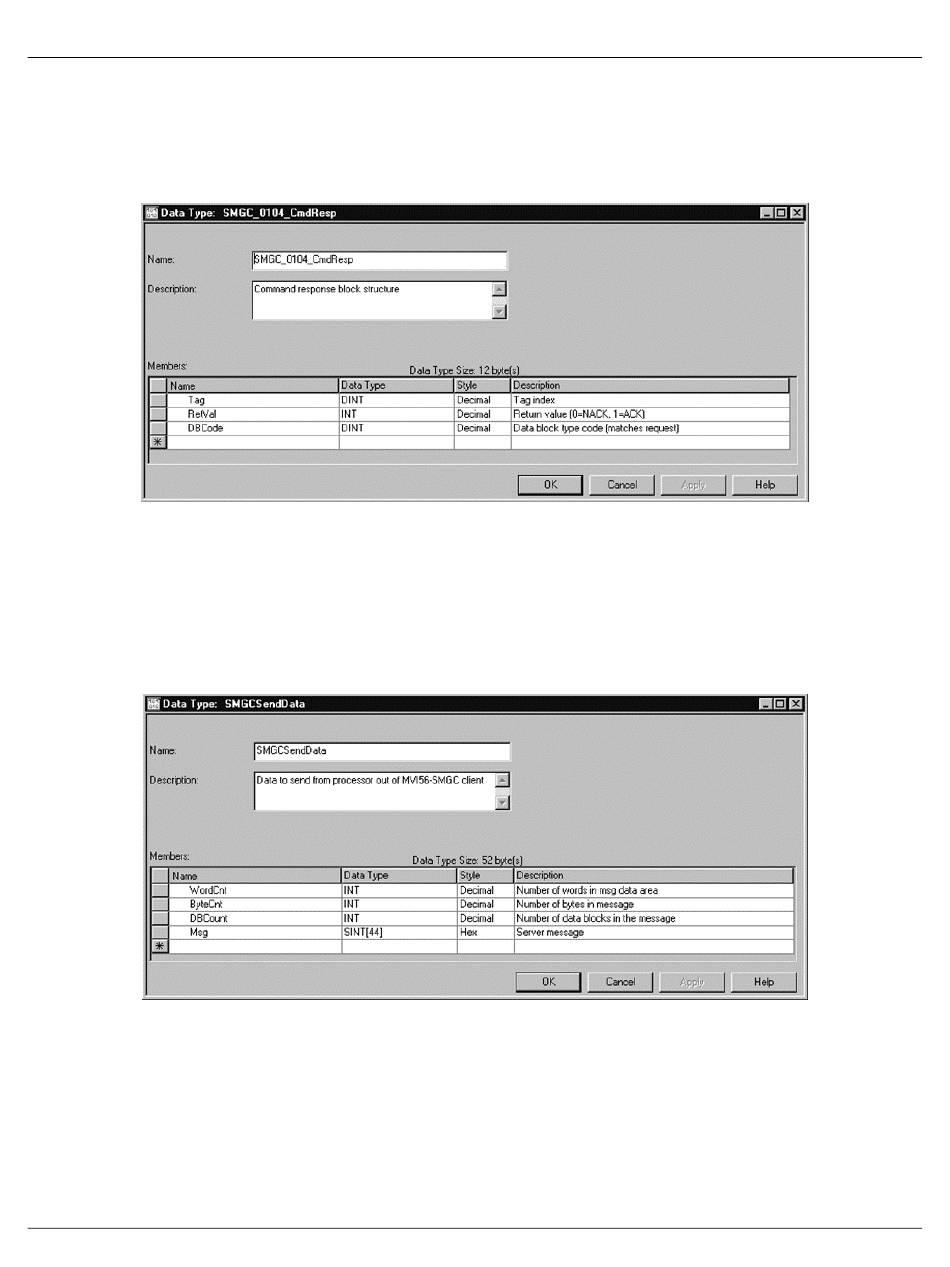

The SMGC_0104_CmdResp object stores the information received in the last command
response block from the server. The structure of this block is shown in the following
illustration:

3.1.5 Transmit Data (SMGCSendData)

The SMGCSendData object is utilized to build messages to send to the module that will
be sent to the server. The structure of this object is such that the data can be directly
copied into a write block built for the module. The structure of this object is shown in the
following screen:
