MVI56E-SMGC ♦ ControlLogix™ Platform
Enhanced FMC722 TPU General Communication Module
5

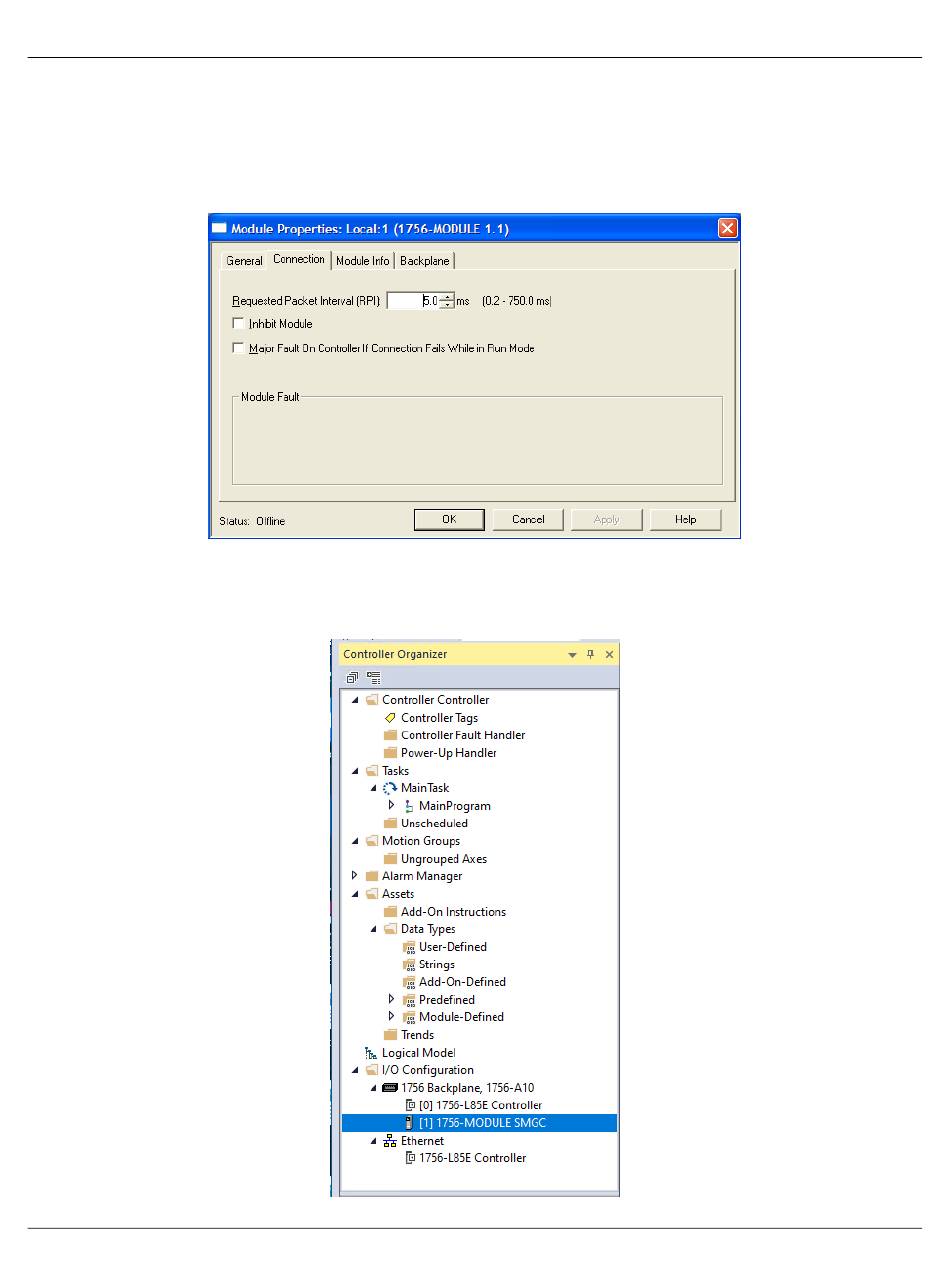

Edit the Module Properties. Select the R
scanning the I/O on the module. This value represents the minimum frequency at
which the module will handle scheduled events. This value should not be set to less
than 1 millisecond. The default value is 5 milliseconds. Values between 1 and 10
milliseconds should work with most applications.
6
Click OK to save the module and close the dialog box. Notice that the module now
appears in the C
ProSoft Technology, Inc.
O
ONTROLLER
RGANIZATION
P
I
EQUESTED
ACKET
NTERVAL
window.
Start Here
User Manual
value for
Page 13 of 98
