2.2.2 Using RSWho to Connect to the Module

You need to have RSLinx installed on your PC to use this feature. You also need an ENBT module set up in
the rack.

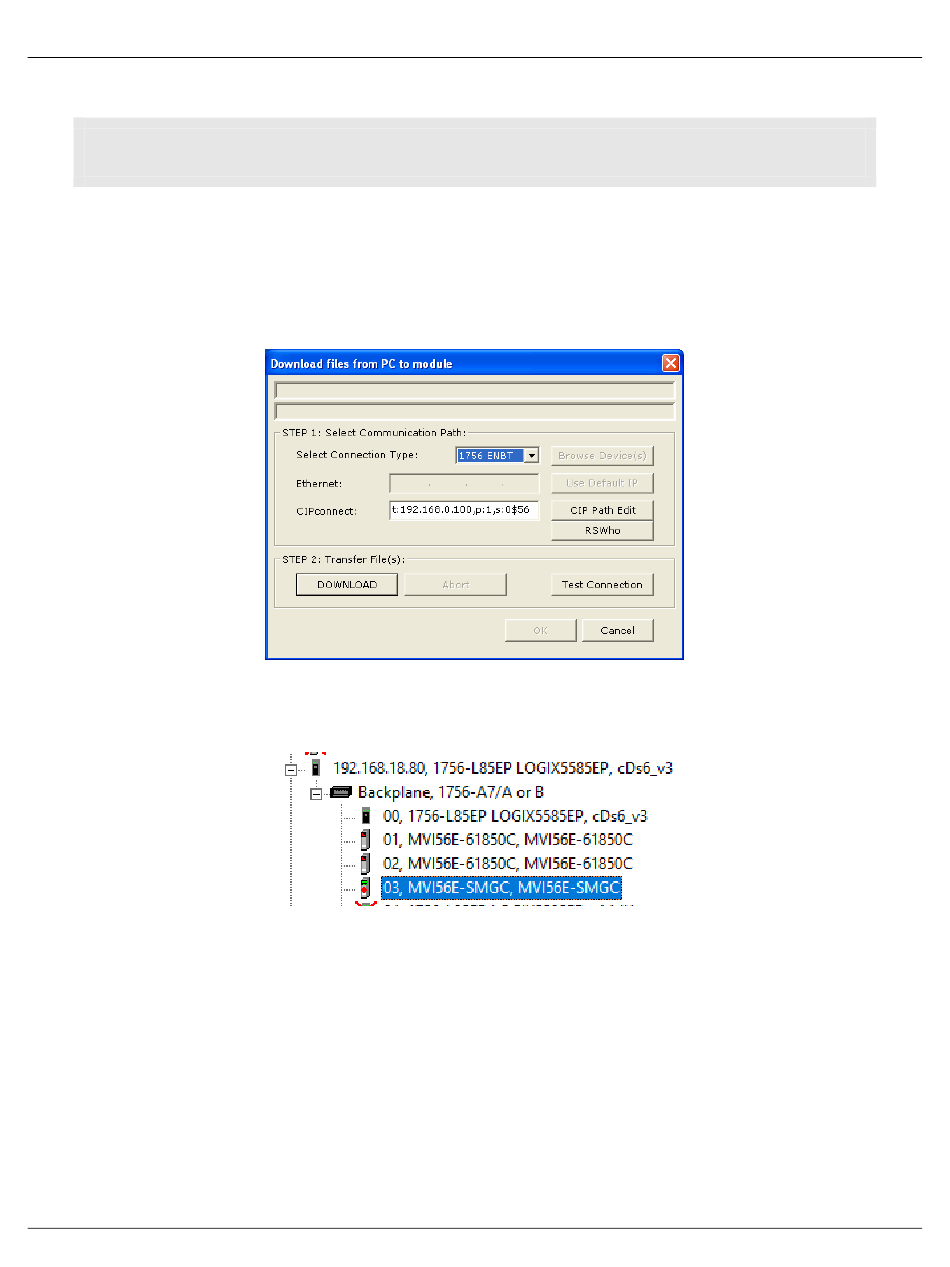

1 In the tree view in ProSoft Configuration Builder, right-click the MVI56E-SMGC
module.
2 From the shortcut menu, choose D
3 In the Download dialog box, choose 1756 ENBT from the Select Connection Type
dropdown box.
4 Click RSW
automatically be identified on the network.
5 Select the module, and then click OK.
