MVI56E-SMGC ♦ ControlLogix™ Platform
Enhanced FMC722 TPU General Communication Module
4.6 I/O Tag Configuration
Use the Tag configuration menus to view the configuration for the MVI56E-SMGC client.

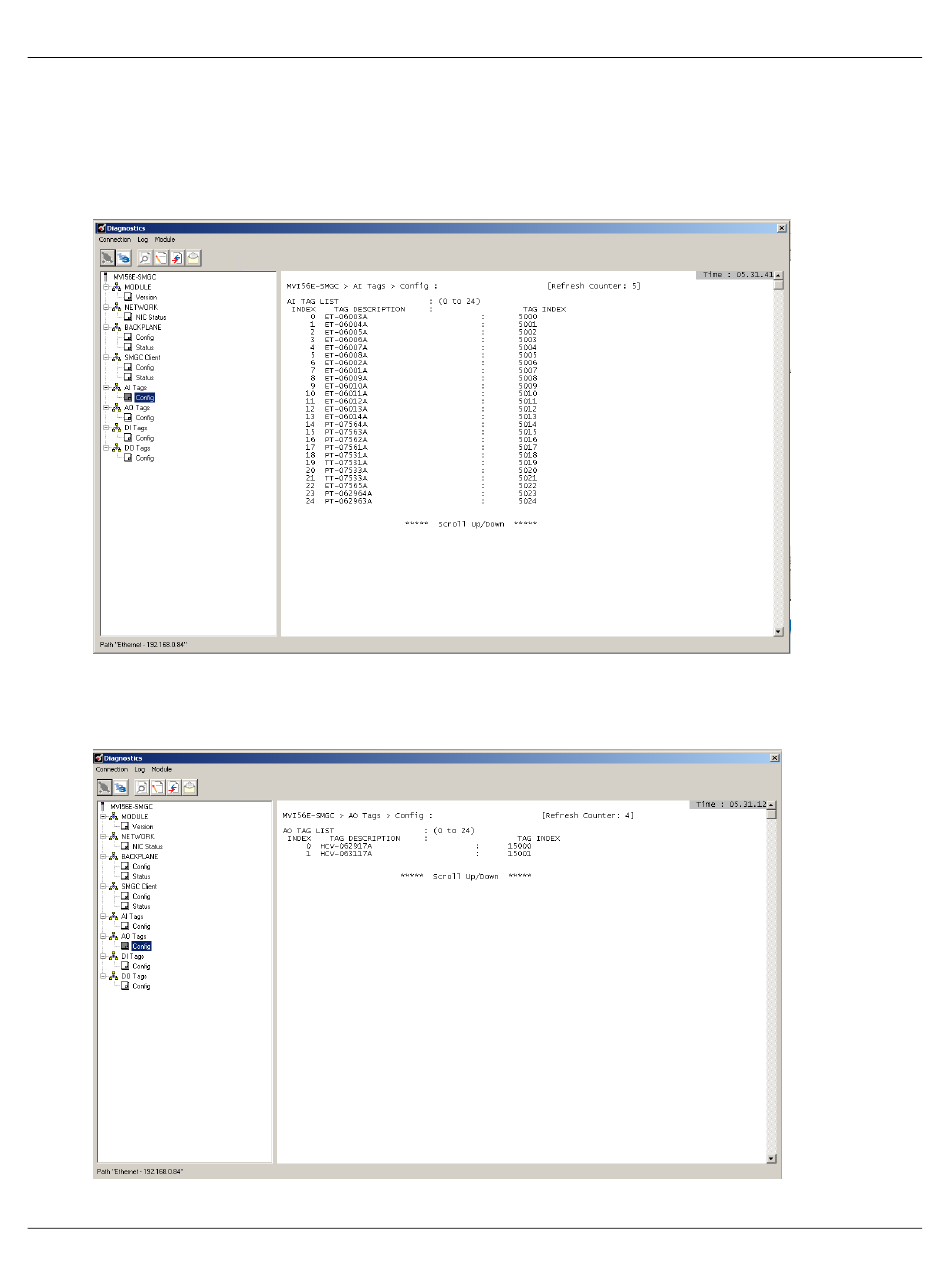

4.6.1 AI Tags
Use the AI Tags menu to display the Analog Input tag configuration.
4.6.2 AO Tags
Use the AO Tags menu to display the Analog Output tag configuration.
ProSoft Technology, Inc.
Diagnostics and Troubleshooting
User Manual
Page 62 of 98
