4.5 Diagnostics Menu

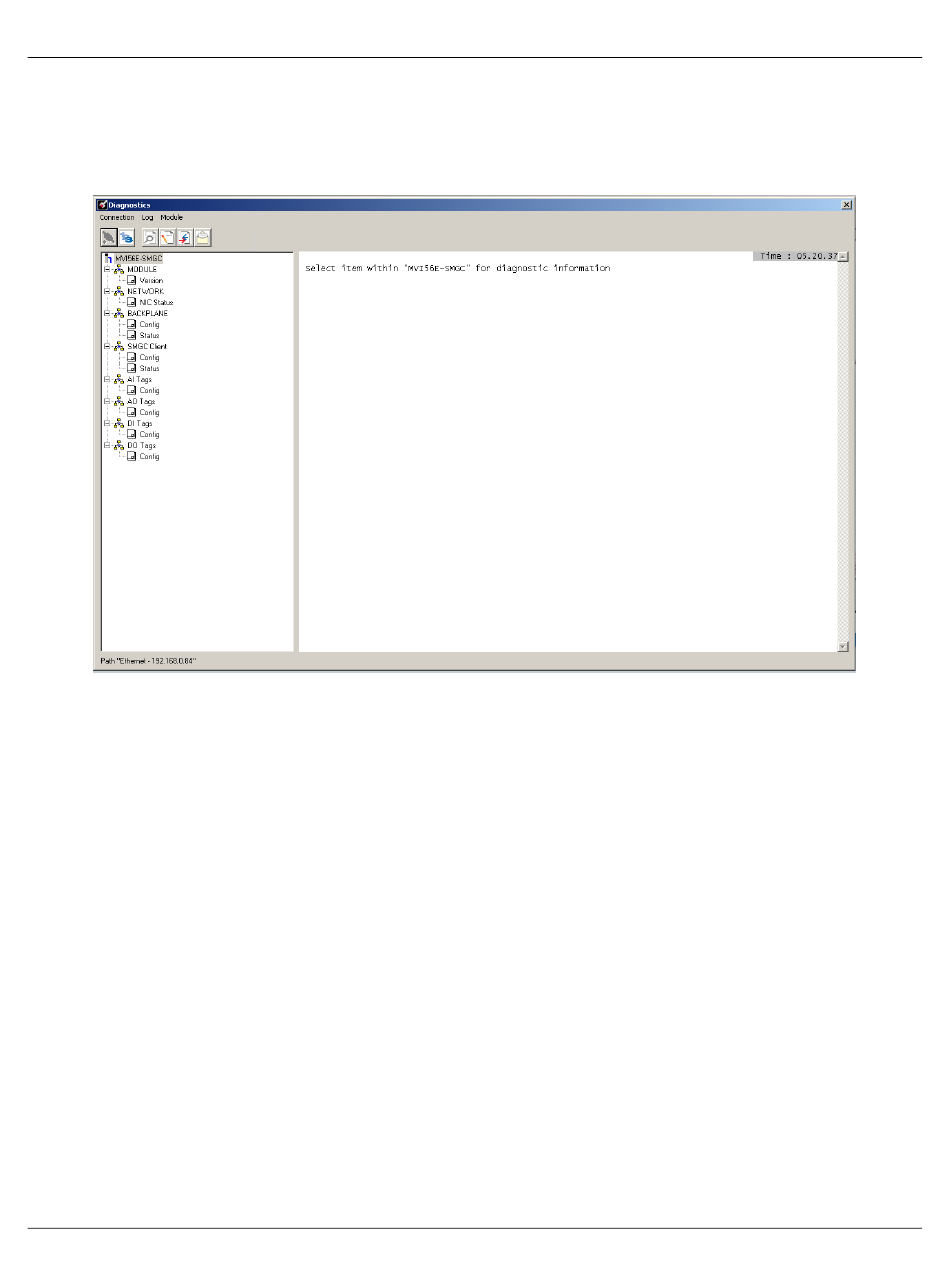

The Diagnostics menu for this module is arranged as a tree structure, with the Main
Menu at the top of the tree, and one or more sub-menus for each menu command. The
first menu you see when you connect to the module is the Main menu.
