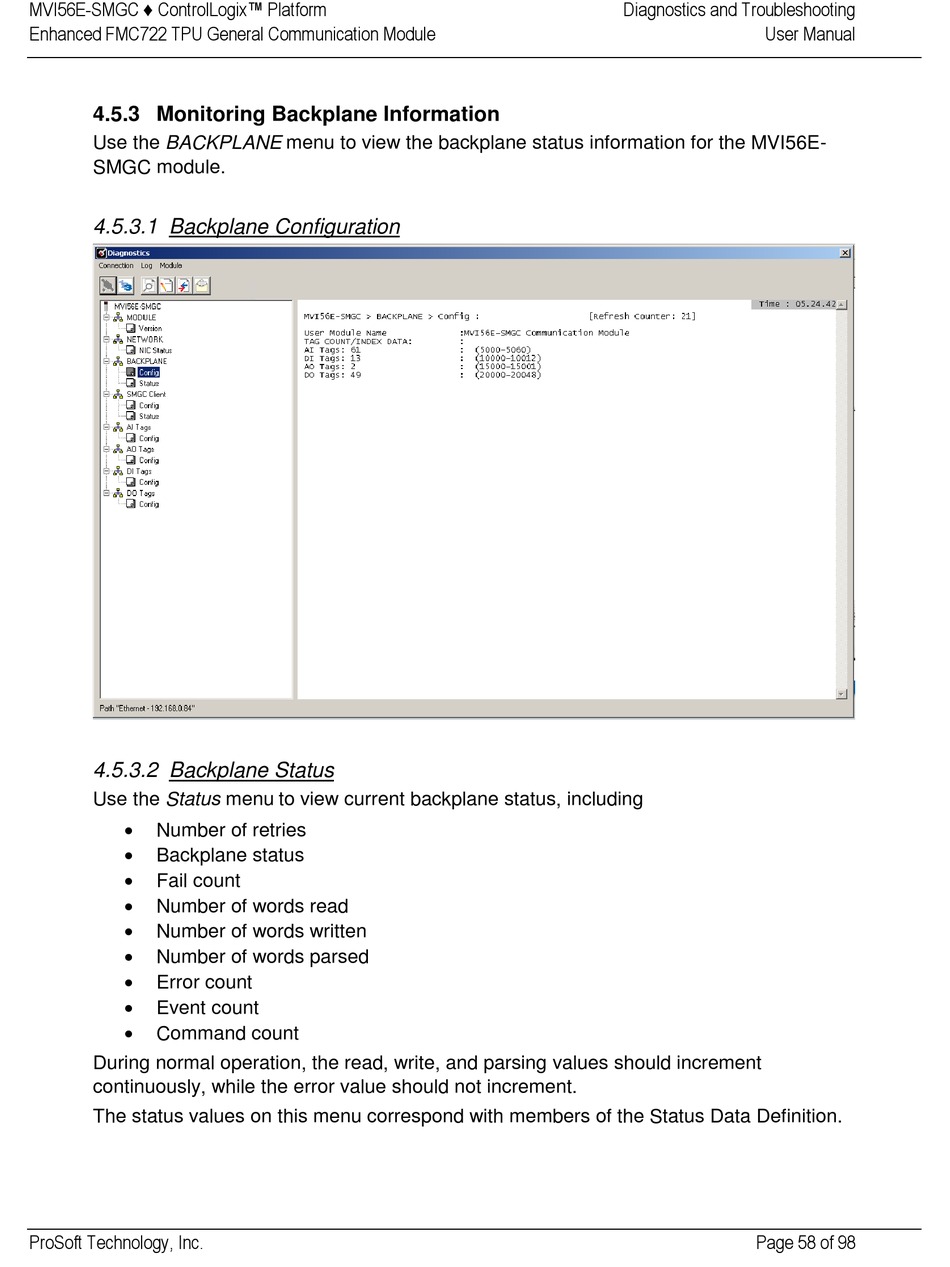

4.5.3 Monitoring Backplane Information

Use the BACKPLANE menu to view the backplane status information for the MVI56E-
SMGC module.
4.5.3.1 Backplane Configuration
4.5.3.2 Backplane Status
Use the Status menu to view current backplane status, including

Number of retries

Backplane status

Fail count

Number of words read

Number of words written

Number of words parsed

Error count

Event count

Command count
During normal operation, the read, write, and parsing values should increment
continuously, while the error value should not increment.
The status values on this menu correspond with members of the Status Data Definition.
