3 Using Controller Tags

All data related to the MVI56E-SMGC is stored in user defined data types. An instance
of the data types is required before the module can be used. This is accomplished by
declaring a variable of the data type in the Controller Tags Edit Tags dialog box. Each of
these object types is discussed in the following topics.

3.1 Main Data Object (SMGCModule)

The SMGCModule object contains most of the data members and objects required by
the MVI56E-SMGC module. An instance of this object should be declared in the

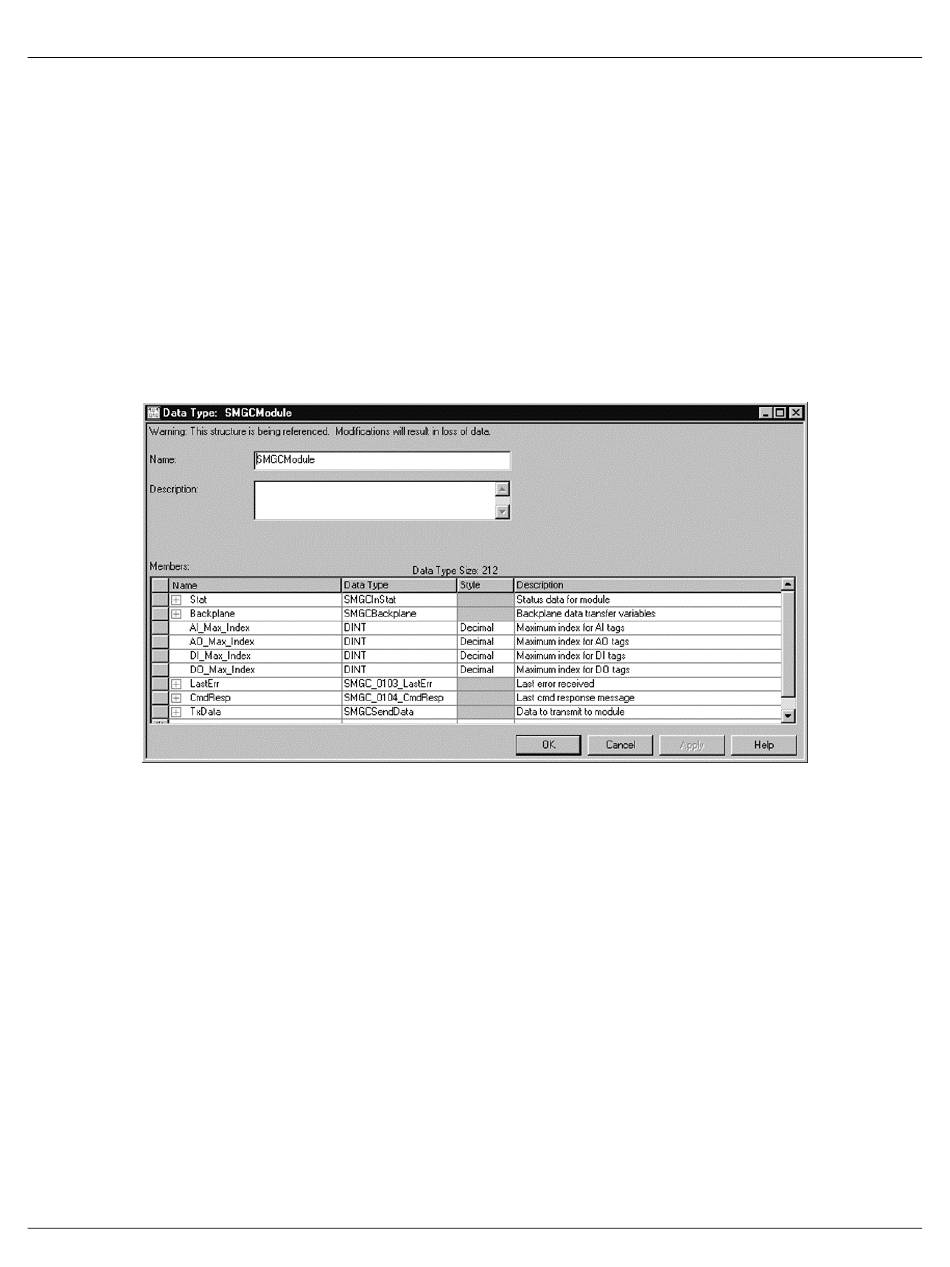

controller tags of the processor. The following figure displays this object:
The members of this object are discussed in the following topics.
