4.5.1 Module Information

Use the MODULE menu to view configuration and hardware information for the MVI56E-
SMGC module's backplane and Ethernet application port.

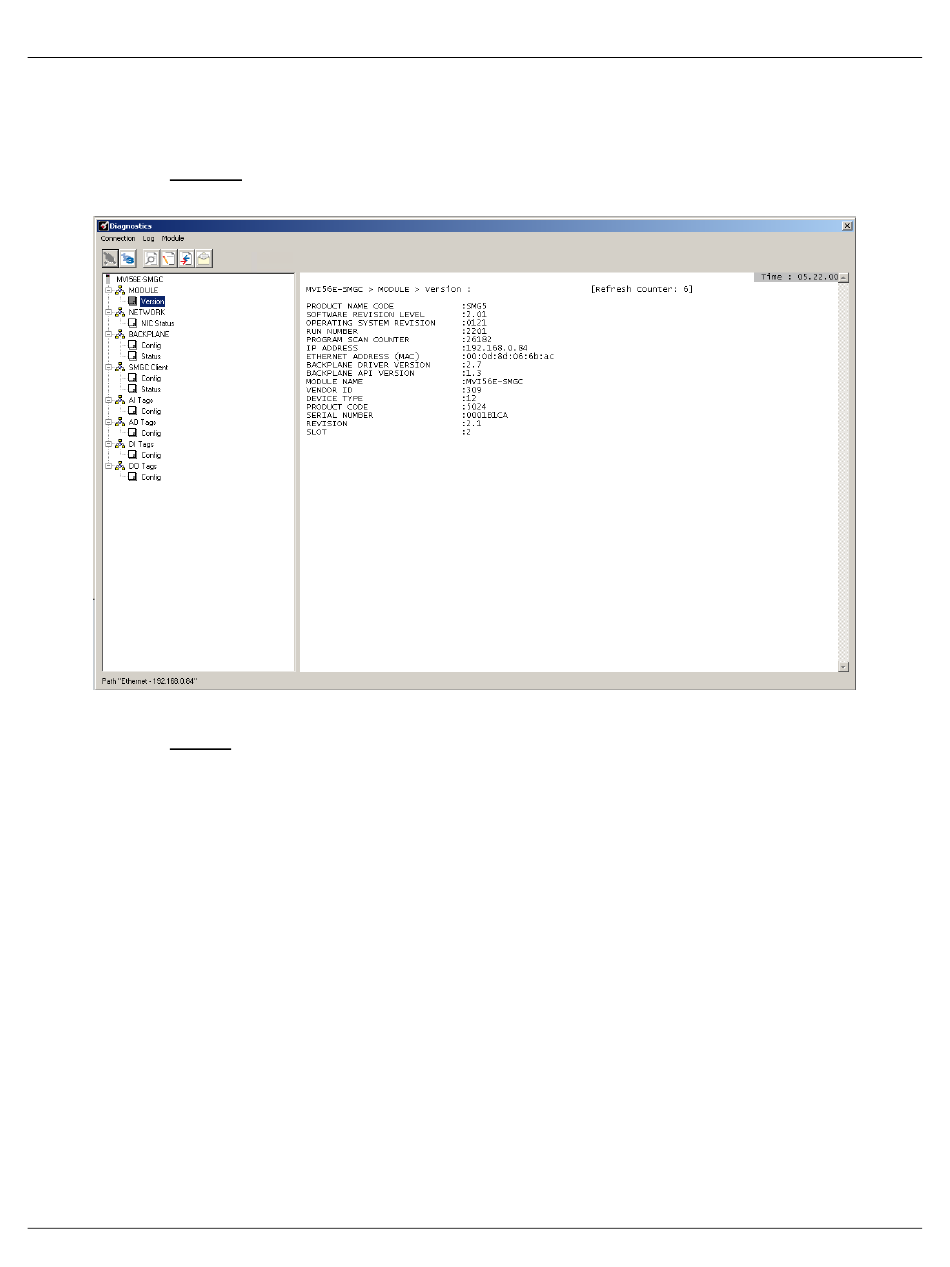

4.5.1.1 Version
Use the Version menu to view module hardware and firmware information.
4.5.1.2 Config
Use the Configuration menu to view backplane configuration settings for the MVI56E-
SMGC module.
The information on this menu corresponds with the configuration information in the
Module settings in ProSoft Configuration Builder.
