MVI56E-SMGC ♦ ControlLogix™ Platform
Enhanced FMC722 TPU General Communication Module

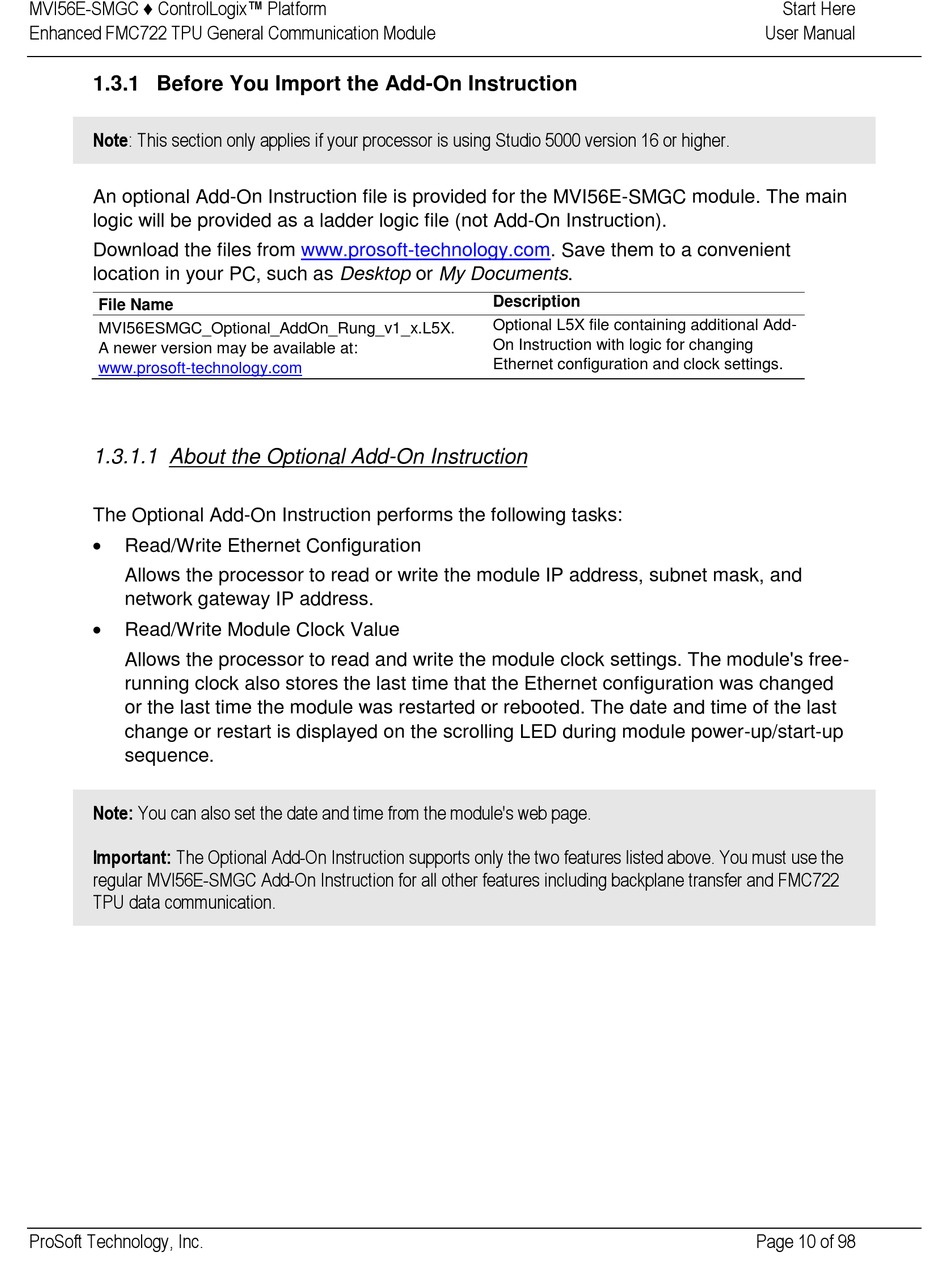

1.3.1 Before You Import the Add-On Instruction

Note: This section only applies if your processor is using Studio 5000 version 16 or higher.
An optional Add-On Instruction file is provided for the MVI56E-SMGC module. The main
logic will be provided as a ladder logic file (not Add-On Instruction).
Download the files from www.prosoft-technology.com. Save them to a convenient
location in your PC, such as Desktop or My Documents.
File Name
MVI56ESMGC_Optional_AddOn_Rung_v1_x.L5X.
A newer version may be available at:
www.prosoft-technology.com
1.3.1.1 About the Optional Add-On Instruction
The Optional Add-On Instruction performs the following tasks:

Read/Write Ethernet Configuration
Allows the processor to read or write the module IP address, subnet mask, and
network gateway IP address.

Read/Write Module Clock Value
Allows the processor to read and write the module clock settings. The module's free-
running clock also stores the last time that the Ethernet configuration was changed
or the last time the module was restarted or rebooted. The date and time of the last
change or restart is displayed on the scrolling LED during module power-up/start-up
sequence.
Note: You can also set the date and time from the module's web page.
Important: The Optional Add-On Instruction supports only the two features listed above. You must use the
regular MVI56E-SMGC Add-On Instruction for all other features including backplane transfer and FMC722
TPU data communication.
ProSoft Technology, Inc.
Description
Optional L5X file containing additional Add-
On Instruction with logic for changing
Ethernet configuration and clock settings.
Start Here
User Manual
Page 10 of 98
