2.1.2 Upgrading from MVI56-SMGC in ProSoft Configuration Builder

MVI56E-SMGC modules are fully backward-compatible with MVI56-SMGC modules.
However, you will need to convert your MVI56-SMGC configuration in ProSoft
Configuration Builder to a form that your new MVI56E-SMGC module will accept when
you download it.
ProSoft Configuration Builder version 2.2.2 or later has an upgrade option that easily
performs this conversion, while preserving all your configuration settings and any name
you may have given your module.
Important: For this procedure, you need to have ProSoft Configuration Builder version 2.2.2 or later
installed on your PC. You can download the latest version from www.prosoft-technology.com.

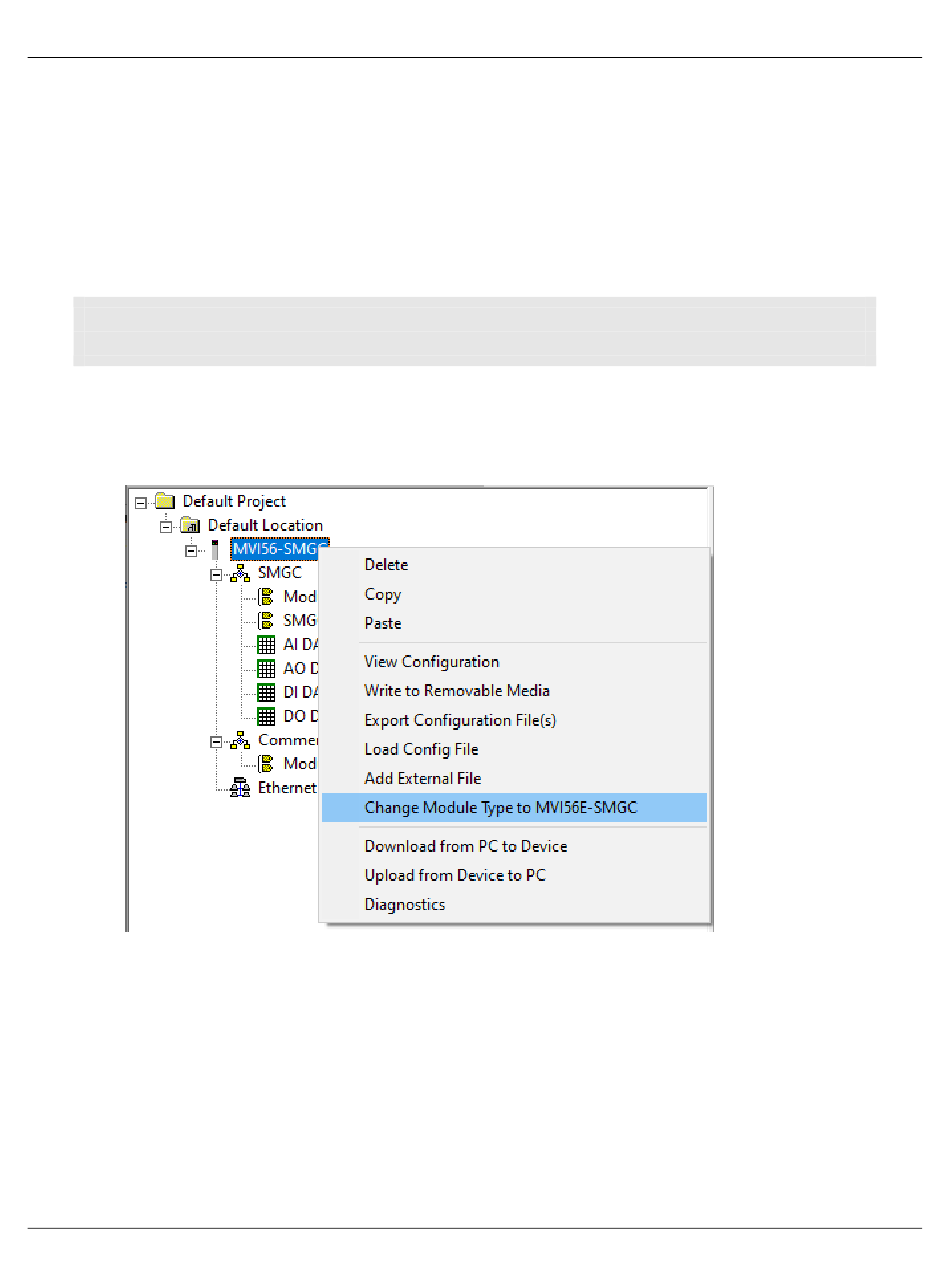

1 In ProSoft Configuration Builder's tree view, click the
open a shortcut menu.
2 On the shortcut menu, select C
ProSoft Technology, Inc.
M T
HANGE ODULE YPE TO
MVI56E-SMGC Configuration
icon and right-click to
MODULE
MVI56E-SMGC.
