5.4 Using the Sample Program

If your processor uses Studio 5000 version 15 or earlier, you will not be able to use the
Add-On Instruction for your module. Follow the steps below to obtain and use a sample
program for your application.

5.4.1 Opening the Sample Program in Studio 5000

The sample program for your MVI56E-SMGC module includes custom tags, data types
and ladder logic for data I/O, status and command control. For most applications, you
can run the sample program without modification, or, for advanced applications, you can
incorporate the sample program into your existing application.
You can always download the latest version of the sample ladder logic and user
manuals for the MVI56E-SMGC module from the ProSoft Technology website, at
www.prosoft-technology.com
From that link, navigate to the download page for your module and choose the sample
program to download for your version of Studio 5000 and your processor.
To determine the firmware version of your processor
Important: The RSLinx service must be installed and running on your computer in order for Studio 5000 to
communicate with the processor. Refer to your RSLinx and Studio 5000 documentation for help configuring
and troubleshooting these applications.
1 Start Studio 5000 and close any existing project that may be loaded.
2 Open the C
communication with the processor. This may take a few moments.

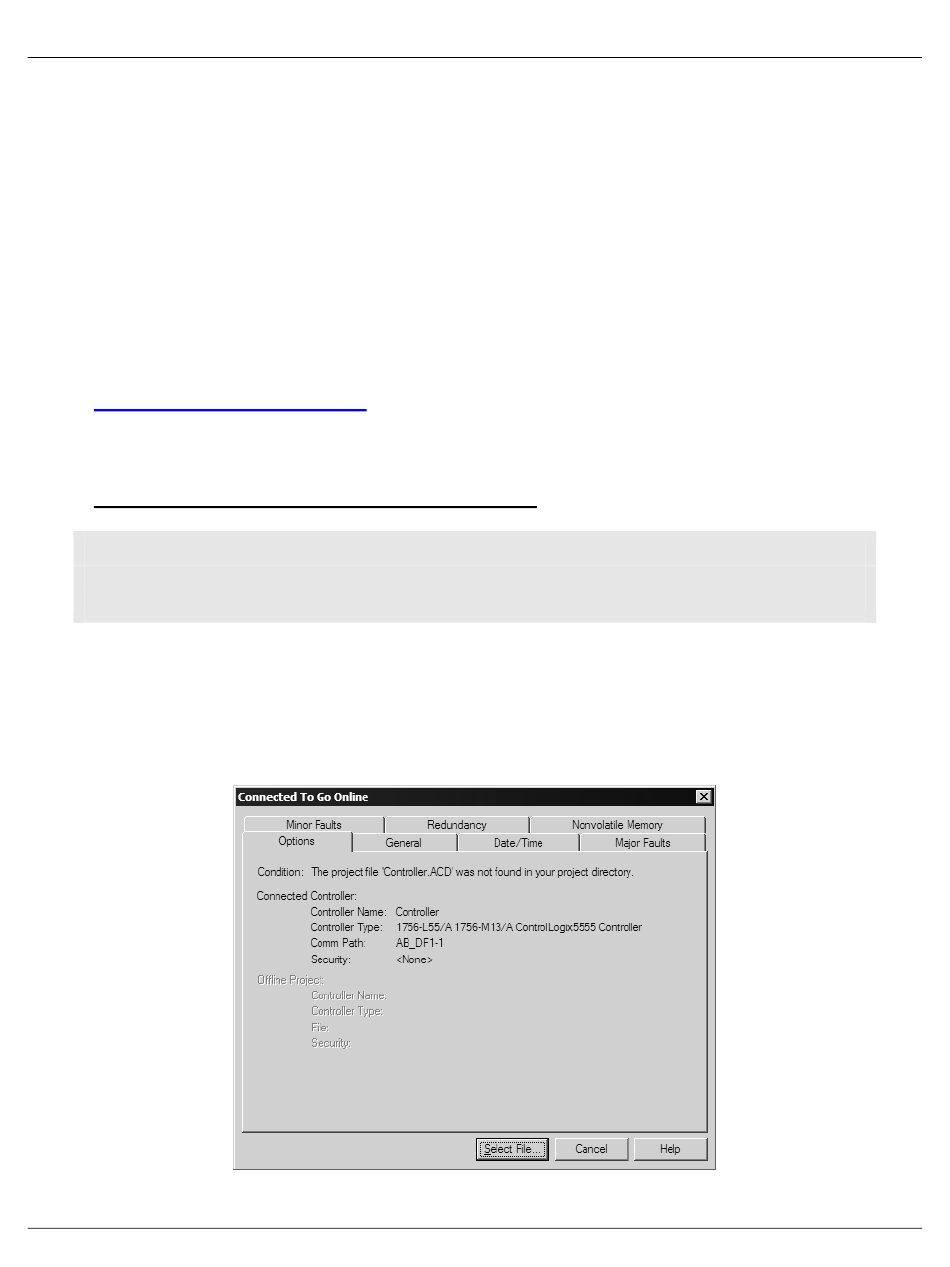

3 When Studio 5000 has established communication with the processor, the
Connected To Go Online dialog box will open.
ProSoft Technology, Inc.
menu and choose G
OMMUNICATIONS
O . Studio 5000 will establish
O NLINE
