6

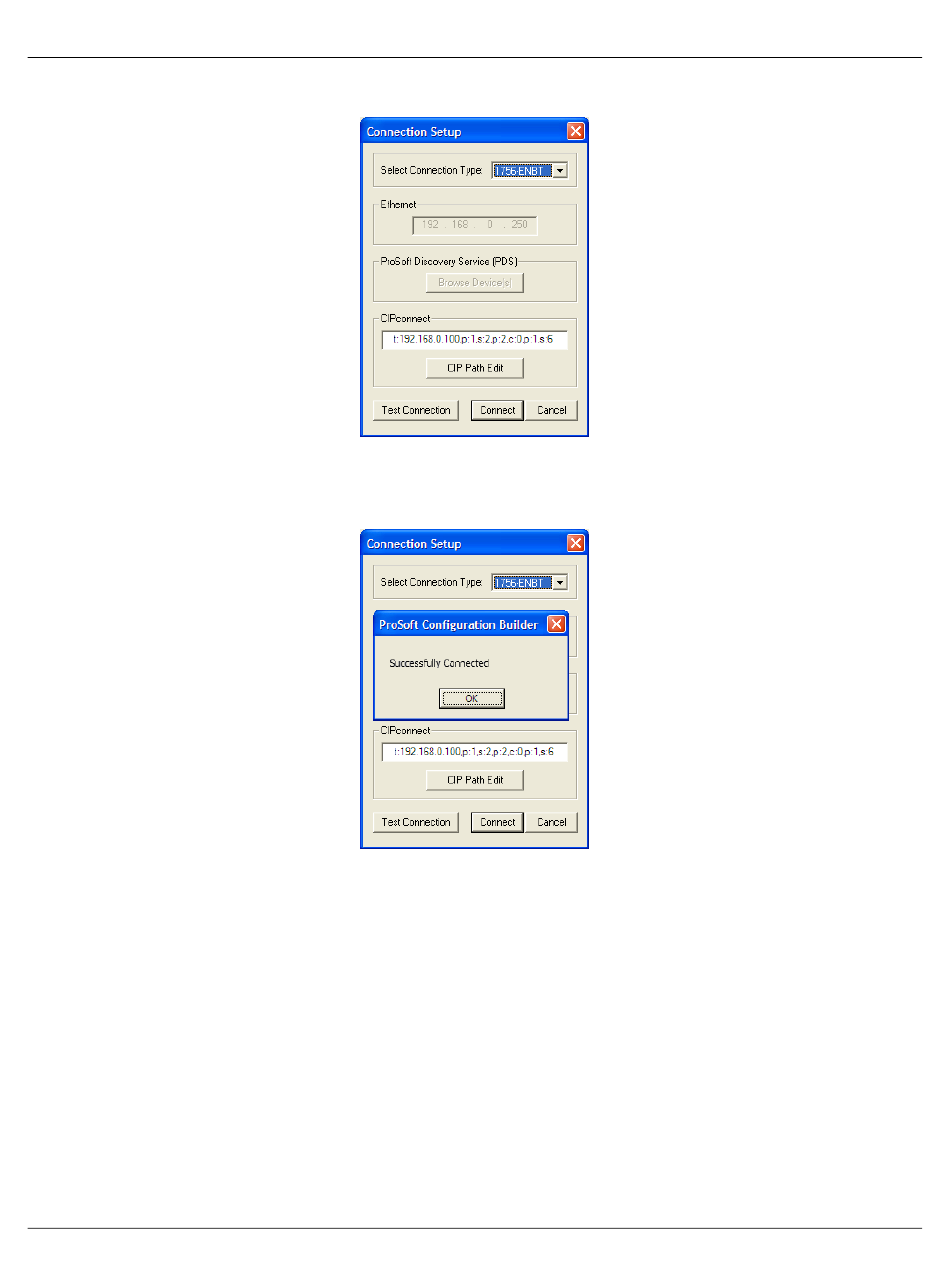

Check the new path in the Connection Setup dialog box.
7
Click T
EST
message should be displayed upon success.
8
Click OK to close the Test Connection pop-up and then click C
Connection Set up dialog box. The Diagnostics menu is now connected through
CIPconnect.
