PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master

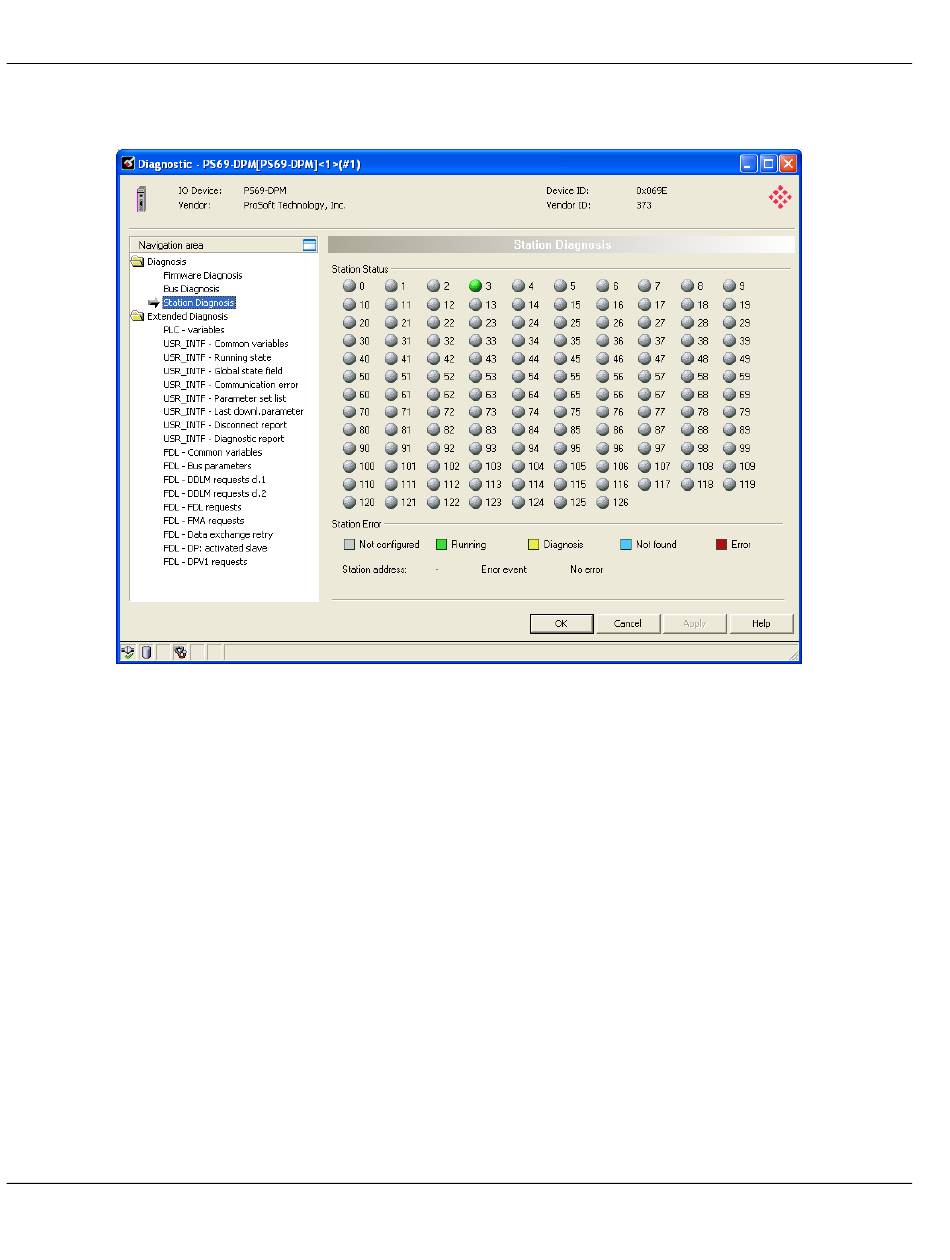

Select Station Diagnosis in the Navigation area to view status for each station connected to
the PS69-DPM Master.
Using the Master Diagnostic Dialog the user can determine the current running state of the
Master. For further definition of each item in this Diagnostic Dialog, refer to the Help within
PROSOFT.fdt (SYCON.net) and the Operating Instruction Manual for ProSoft DTM for
PROFIBUS Master Devices.
