PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
2.3 RSLogix 5000 (version 15 or lower)
The section below contains instructions for configuring the PS69-DPM module in a
CompactLogix system using RSLogix 5000 version 15 or lower.
Note: The simplest way to startup the module in an RSLogix 5000 project is to use the example project provided
on the ProSoft Solutions DVD. In this example project, the slot number in the configuration dialog of the module
may have to be changed to match the users system.
2.3.1 Module Selection
Create a new project in RSLogix 5000 using a CompactLogix controller. Then the first step

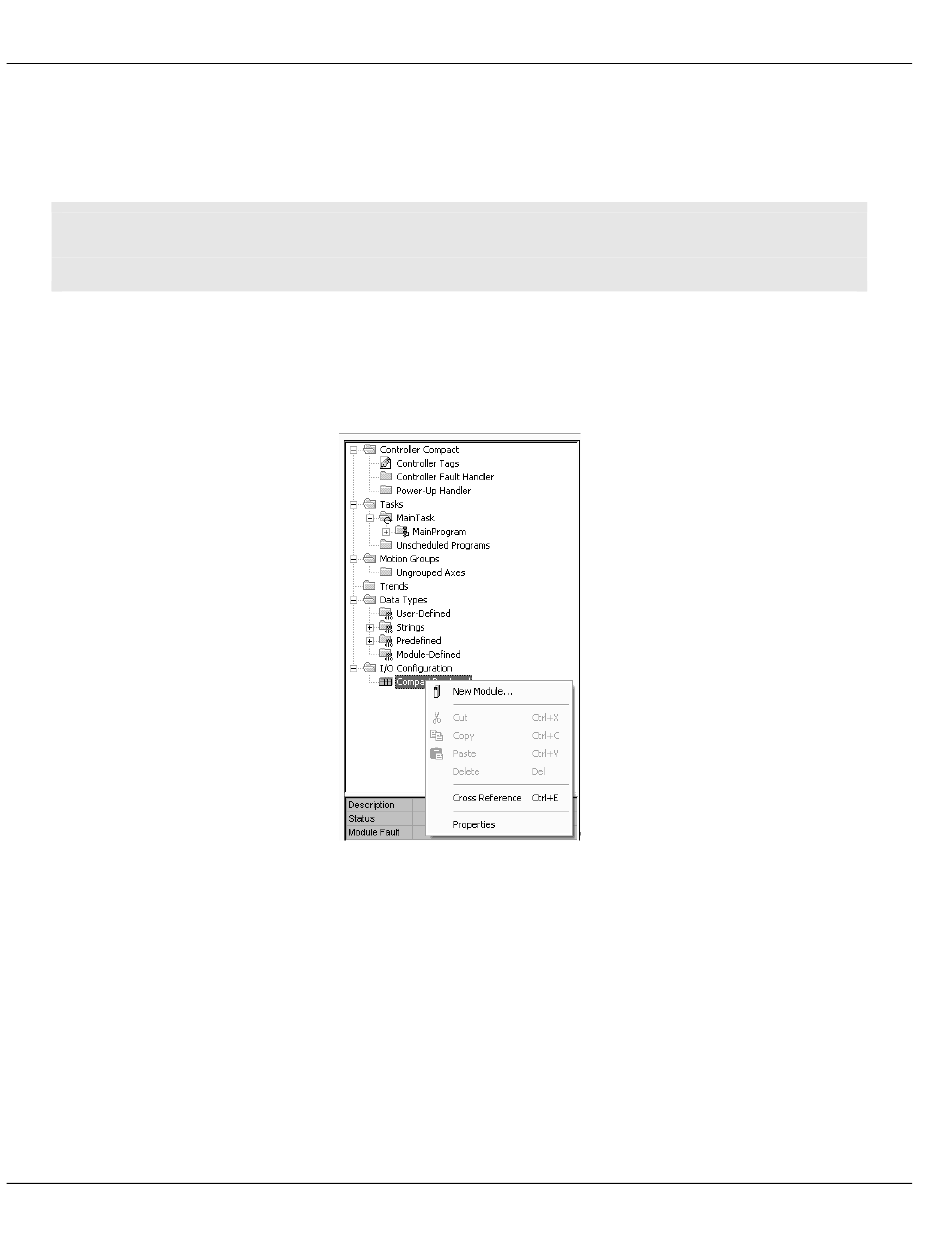

is to select the module and add it to your project. Right click on the I/O Configuration
CompactBus Local of the controller project. Select New Module as shown below.
