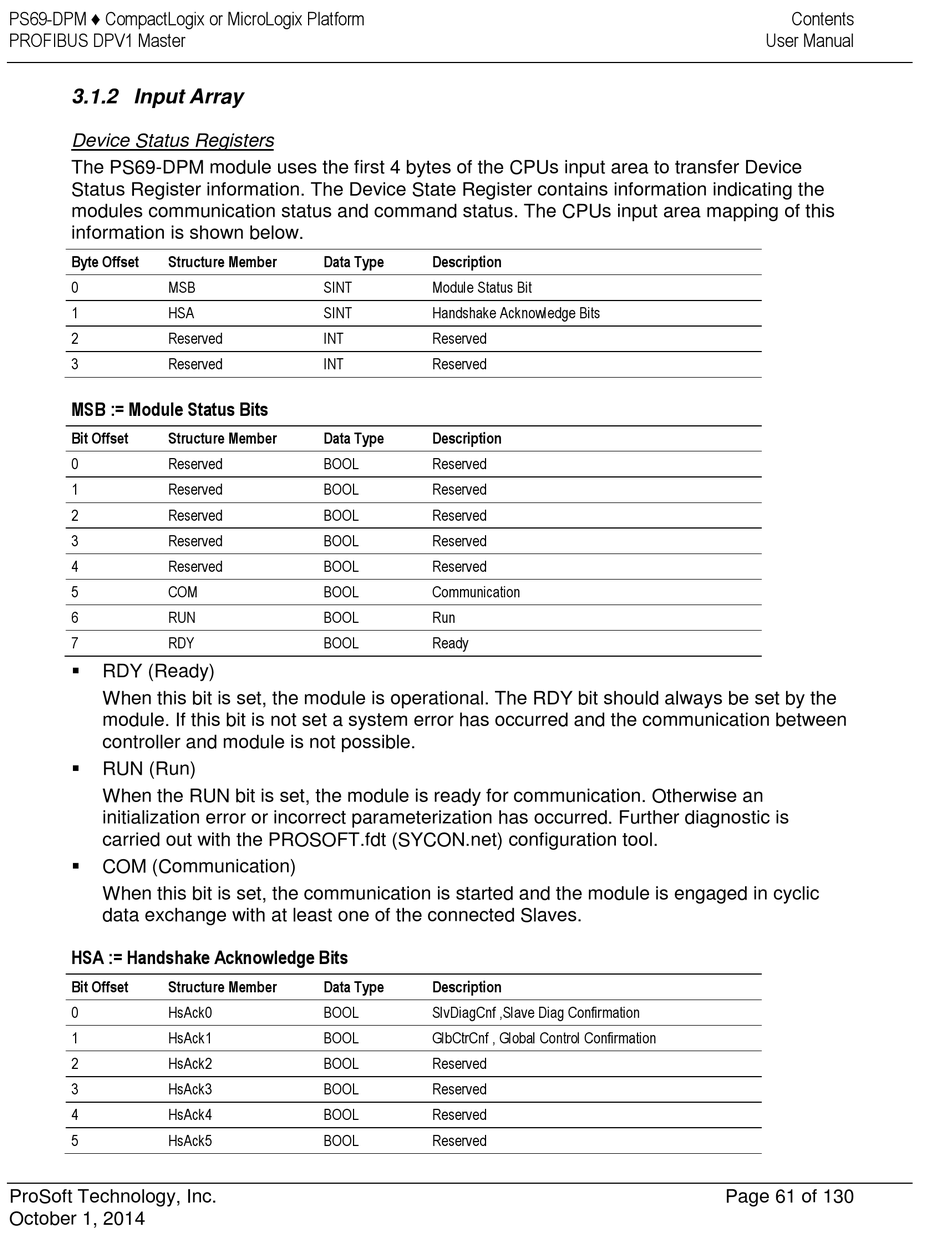

3.1.2 Input Array
Device Status Registers
The PS69-DPM module uses the first 4 bytes of the CPUs input area to transfer Device
Status Register information. The Device State Register contains information indicating the
modules communication status and command status. The CPUs input area mapping of this
information is shown below.
Byte Offset Structure Member
0 MSB
1 HSA
2 Reserved
3 Reserved
MSB := Module Status Bits
Bit Offset Structure Member
0 Reserved
1 Reserved
2 Reserved
3 Reserved
4 Reserved
5 COM
6 RUN
7 RDY

RDY (Ready)
When this bit is set, the module is operational. The RDY bit should always be set by the
module. If this bit is not set a system error has occurred and the communication between
controller and module is not possible.

RUN (Run)
When the RUN bit is set, the module is ready for communication. Otherwise an
initialization error or incorrect parameterization has occurred. Further diagnostic is
carried out with the PROSOFT.fdt (SYCON.net) configuration tool.

COM (Communication)
When this bit is set, the communication is started and the module is engaged in cyclic
data exchange with at least one of the connected Slaves.
HSA := Handshake Acknowledge Bits
Bit Offset Structure Member
0 HsAck0
1 HsAck1
2 HsAck2
3 HsAck3
4 HsAck4
5 HsAck5
ProSoft Technology, Inc.
October 1, 2014
Data Type Description
SINT Module Status Bit
SINT Handshake Acknowledge Bits
INT Reserved
INT Reserved
Data Type Description
BOOL Reserved
BOOL Reserved
BOOL Reserved
BOOL Reserved
BOOL Reserved
BOOL Communication
BOOL Run
BOOL Ready
Data Type Description
BOOL SlvDiagCnf ,Slave Diag Confirmation
BOOL GlbCtrCnf , Global Control Confirmation
BOOL Reserved
BOOL Reserved
BOOL Reserved
BOOL Reserved
