PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
Slave Groups

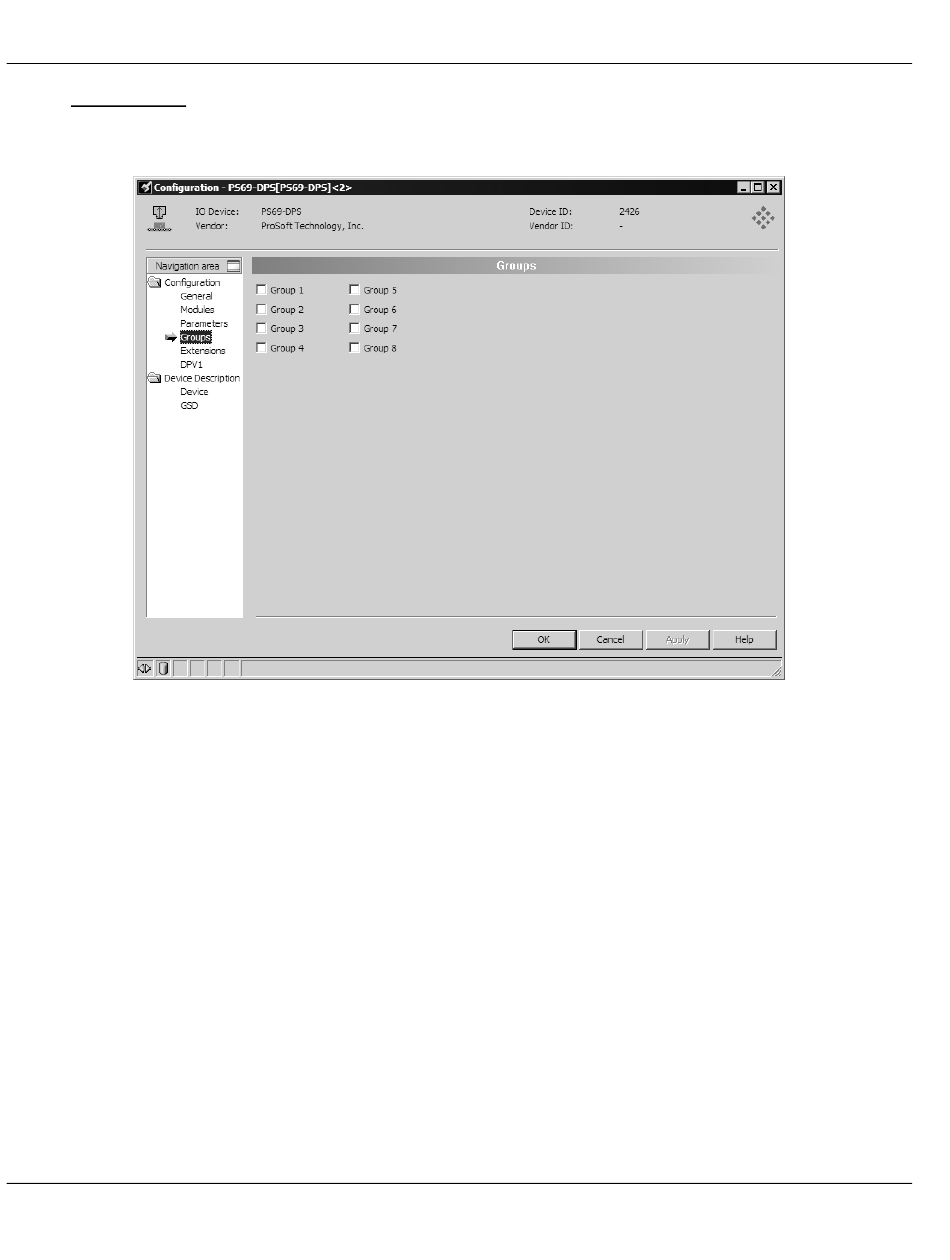

Select Groups in the navigation area. The dialog should appear as shown in the figure
below.
A Slave can be assigned to be member of one or more groups. The group membership
functions as a filter for the Sync and Freeze commands. The Global Control telegram
(containing Sync and Freeze commands) is sent as a broadcast telegram that allow slaves
synchronizing their input and output data. Only the Slaves assigned to groups react on Sync
and Freeze commands.
