User Manual
8

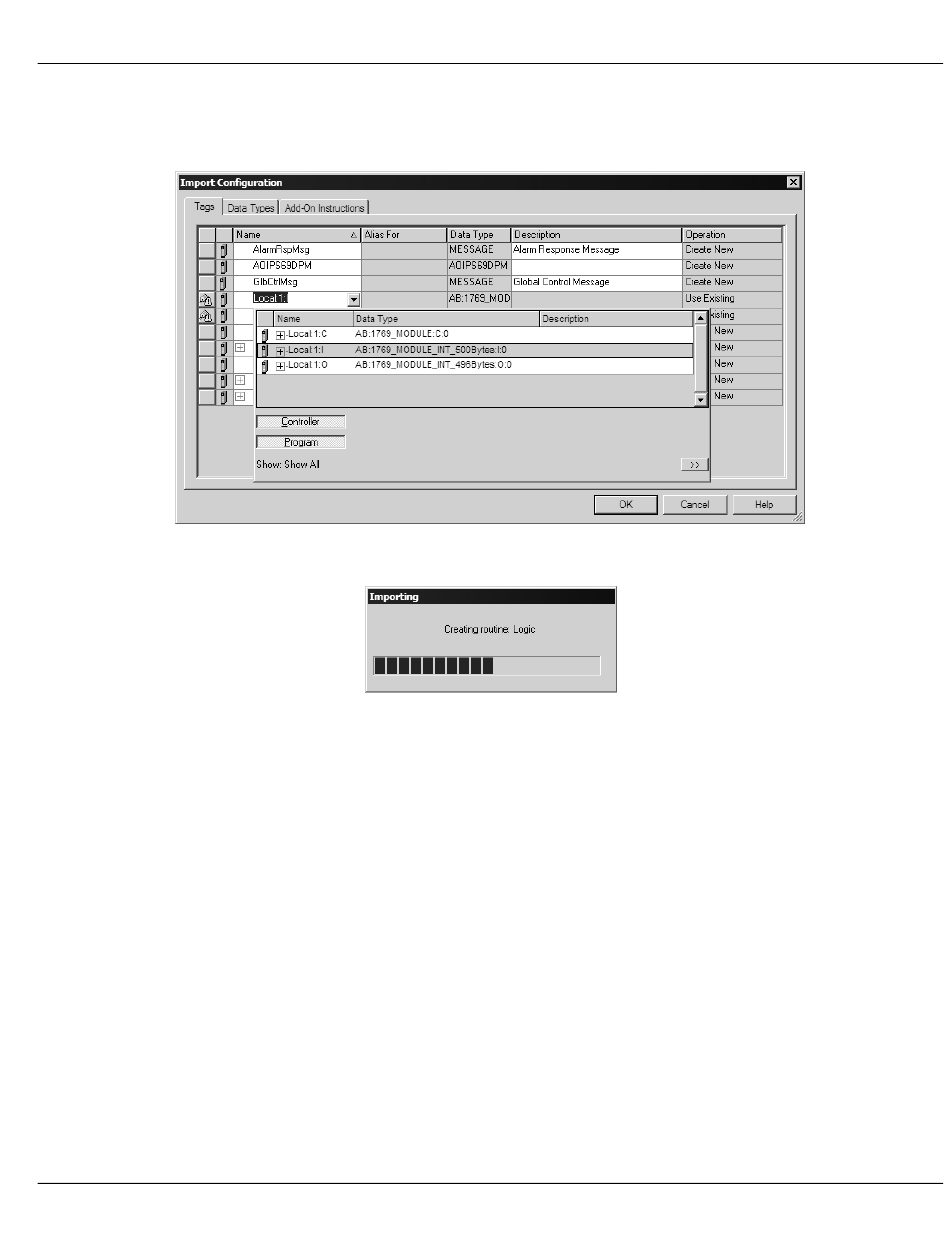

If you are using the module in a different slot (or remote rack) select the correct
connection input and output variables associated to the module. If your module is
located in slot 1 of the local rack this step is not required.
Click OK to confirm the import. RSLogix will indicate that the import is under progress:
Page 20 of 130
PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
ProSoft Technology, Inc.
October 1, 2014
