PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master

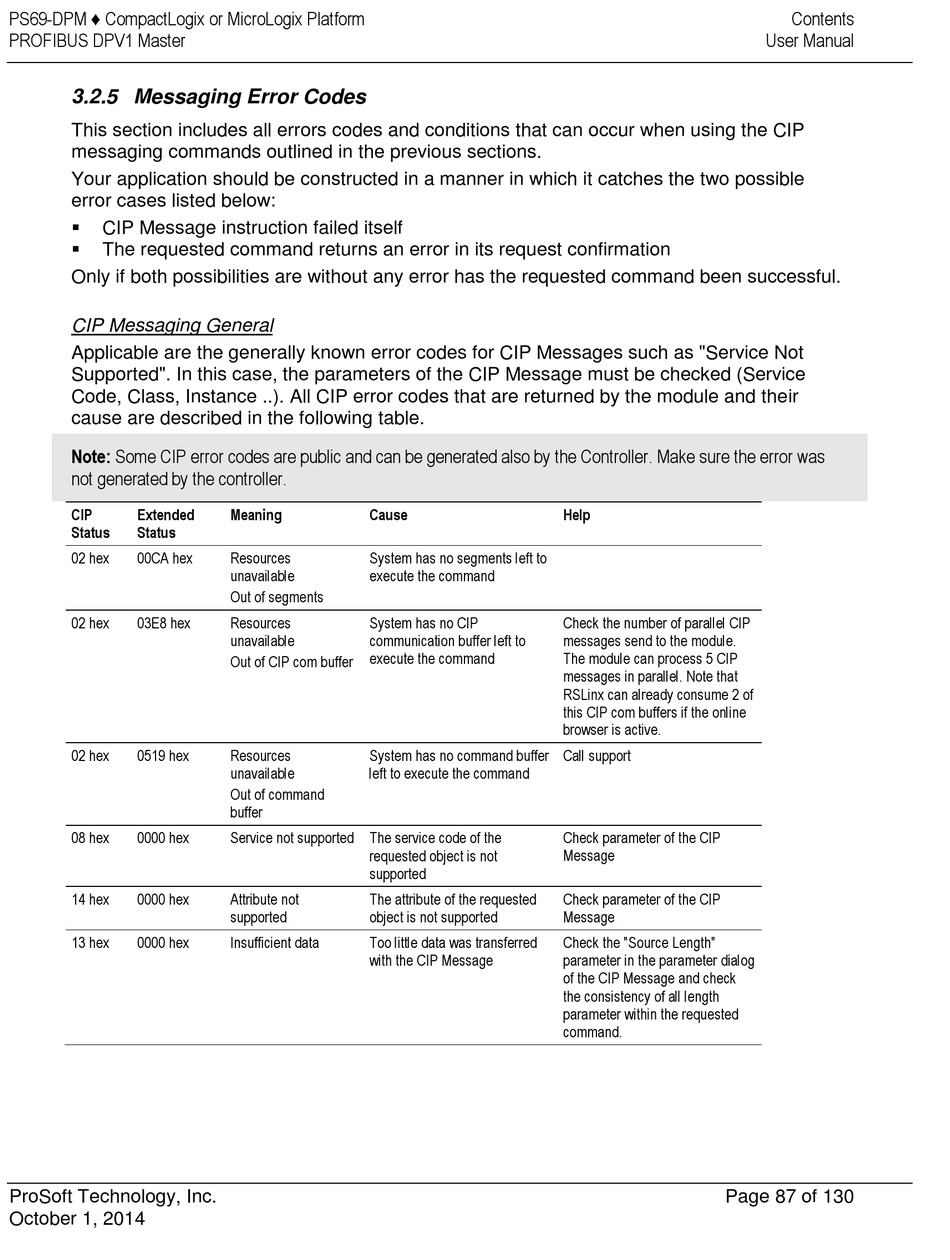

3.2.5 Messaging Error Codes
This section includes all errors codes and conditions that can occur when using the CIP
messaging commands outlined in the previous sections.
Your application should be constructed in a manner in which it catches the two possible
error cases listed below:

CIP Message instruction failed itself

The requested command returns an error in its request confirmation
Only if both possibilities are without any error has the requested command been successful.
CIP Messaging General
Applicable are the generally known error codes for CIP Messages such as "Service Not
Supported". In this case, the parameters of the CIP Message must be checked (Service
Code, Class, Instance ..). All CIP error codes that are returned by the module and their
cause are described in the following table.
Note: Some CIP error codes are public and can be generated also by the Controller. Make sure the error was
not generated by the controller.
CIP Extended
Status Status
02 hex 00CA hex
02 hex 03E8 hex
02 hex 0519 hex
08 hex 0000 hex
14 hex 0000 hex
13 hex 0000 hex
ProSoft Technology, Inc.
October 1, 2014
Meaning Cause
Resources System has no segments left to
unavailable execute the command
Out of segments
Resources System has no CIP
unavailable communication buffer left to
execute the command
Out of CIP com buffer
Resources System has no command buffer
unavailable left to execute the command
Out of command
buffer
Service not supported The service code of the
requested object is not
supported
Attribute not The attribute of the requested
supported object is not supported
Insufficient data Too little data was transferred
with the CIP Message
Help
Check the number of parallel CIP
messages send to the module.
The module can process 5 CIP
messages in parallel. Note that
RSLinx can already consume 2 of
this CIP com buffers if the online
browser is active.
Call support
Check parameter of the CIP
Message
Check parameter of the CIP
Message
Check the "Source Length"
parameter in the parameter dialog
of the CIP Message and check
the consistency of all length
parameter within the requested
command.
