PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
Reload Device Catalog

Start PROSOFT.fdt (SYCON.net) application.

Create a new empty project without any device by using the Menu item File>New

Open the PROSOFT.fdt (SYCON.net) Device Catalog with the menu item
Network>Device Catalog...

Click the Reload button.
Now the new slave device is available in the Device Catalog list.
Slave Settings

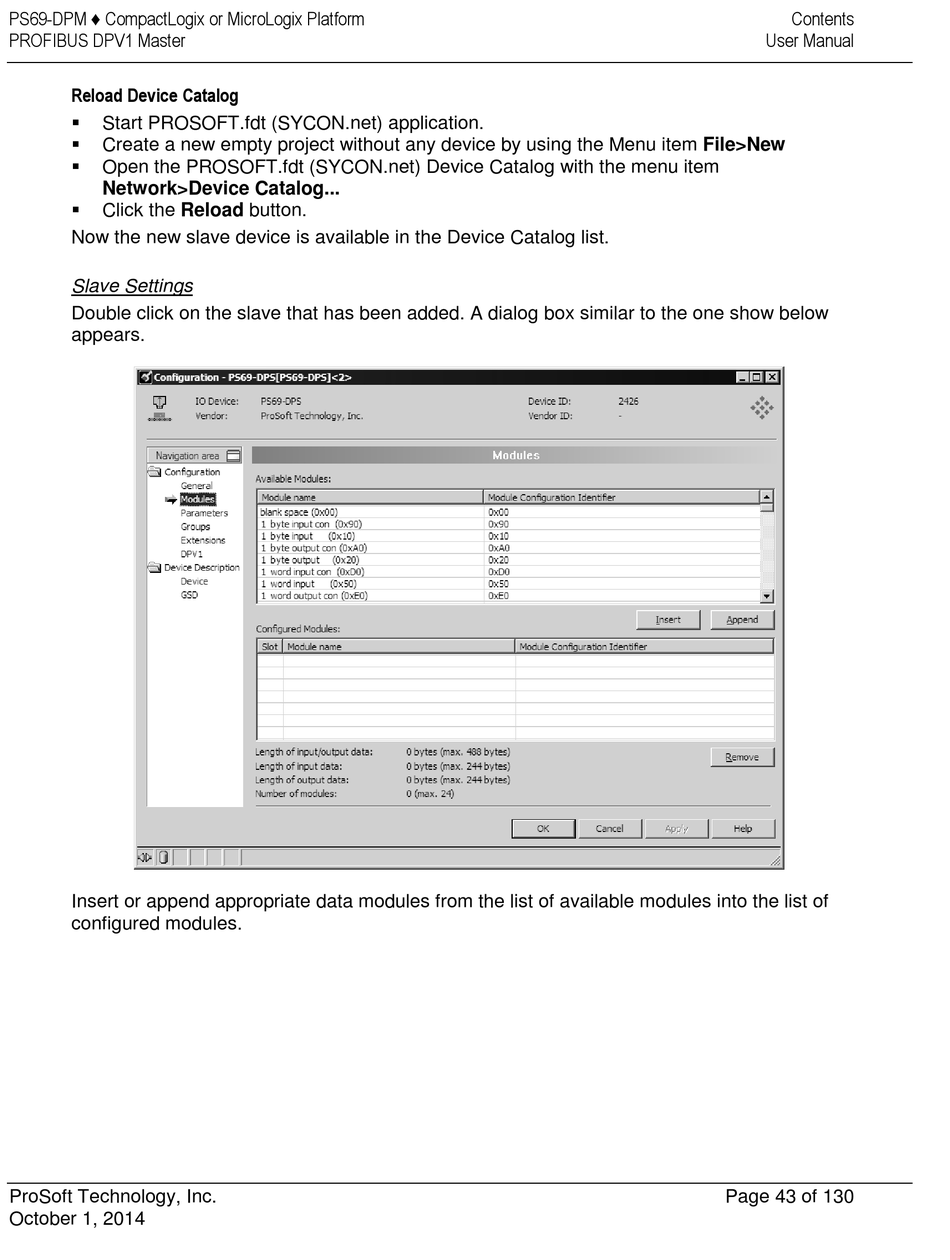

Double click on the slave that has been added. A dialog box similar to the one show below
appears.
Insert or append appropriate data modules from the list of available modules into the list of
configured modules.
