PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
5 Diagnostics and Troubleshooting
In This Chapter

Diagnostic Interface ...............................................................................95

Hardware Diagnostics (LED) .................................................................96

PROSOFT.fdt (SYCON.net) Diagnostics ...............................................97

Troubleshooting ...................................................................................100
This section describes the possible diagnostics and troubleshooting procedures for the
PS69-DPM Master module.

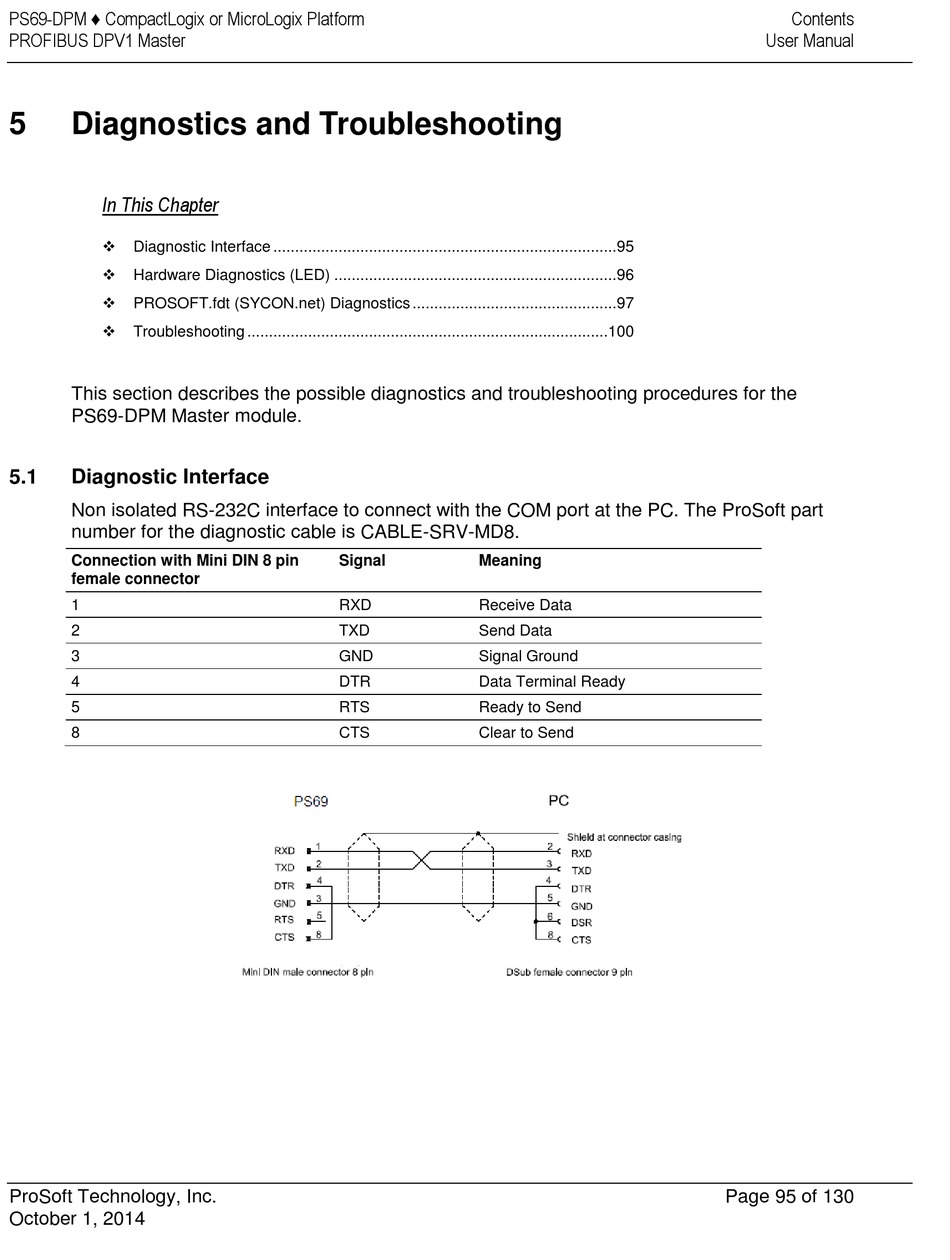

5.1 Diagnostic Interface
Non isolated RS-232C interface to connect with the COM port at the PC. The ProSoft part
number for the diagnostic cable is CABLE-SRV-MD8.
Connection with Mini DIN 8 pin
female connector
1
2
3
4
5
8
ProSoft Technology, Inc.
October 1, 2014
Signal Meaning
RXD Receive Data
TXD Send Data
GND Signal Ground
DTR Data Terminal Ready
RTS Ready to Send
CTS Clear to Send
Contents
User Manual
Page 95 of 130
