PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
2.4 RSLogix 500
The sections below contain instructions for configuring the PS69-DPM module in a
MicroLogix 1500 system using RSLogix 500.
2.4.1 Module Selection

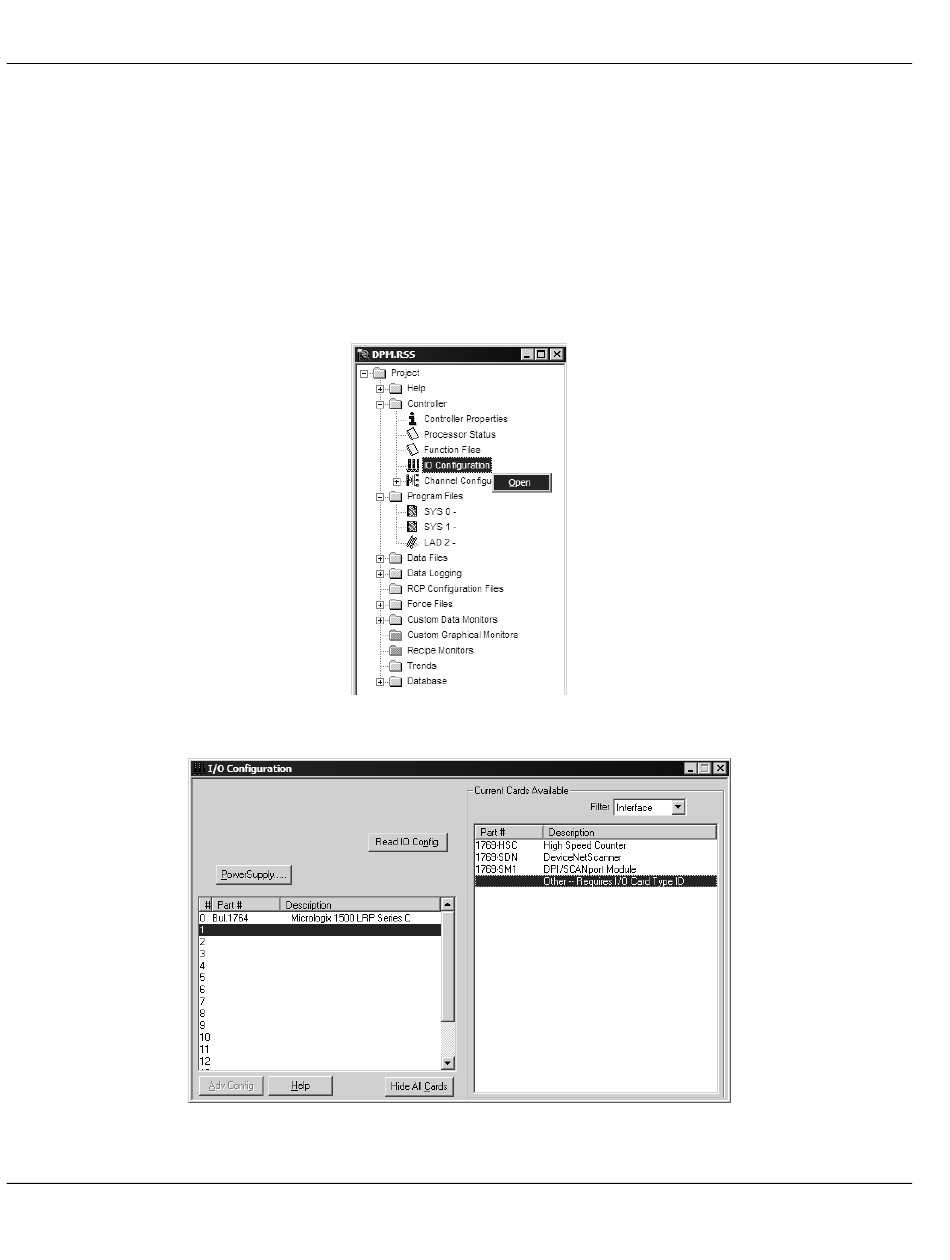

Create a new project in RSLogix 500 using a MicroLogix 1500 controller. Then the first step
is to select the module and add it to your project. Right click on the I/O configuration of the
controller project. Select Open as shown below.
The following dialog box appears for the selection of the new Module.
