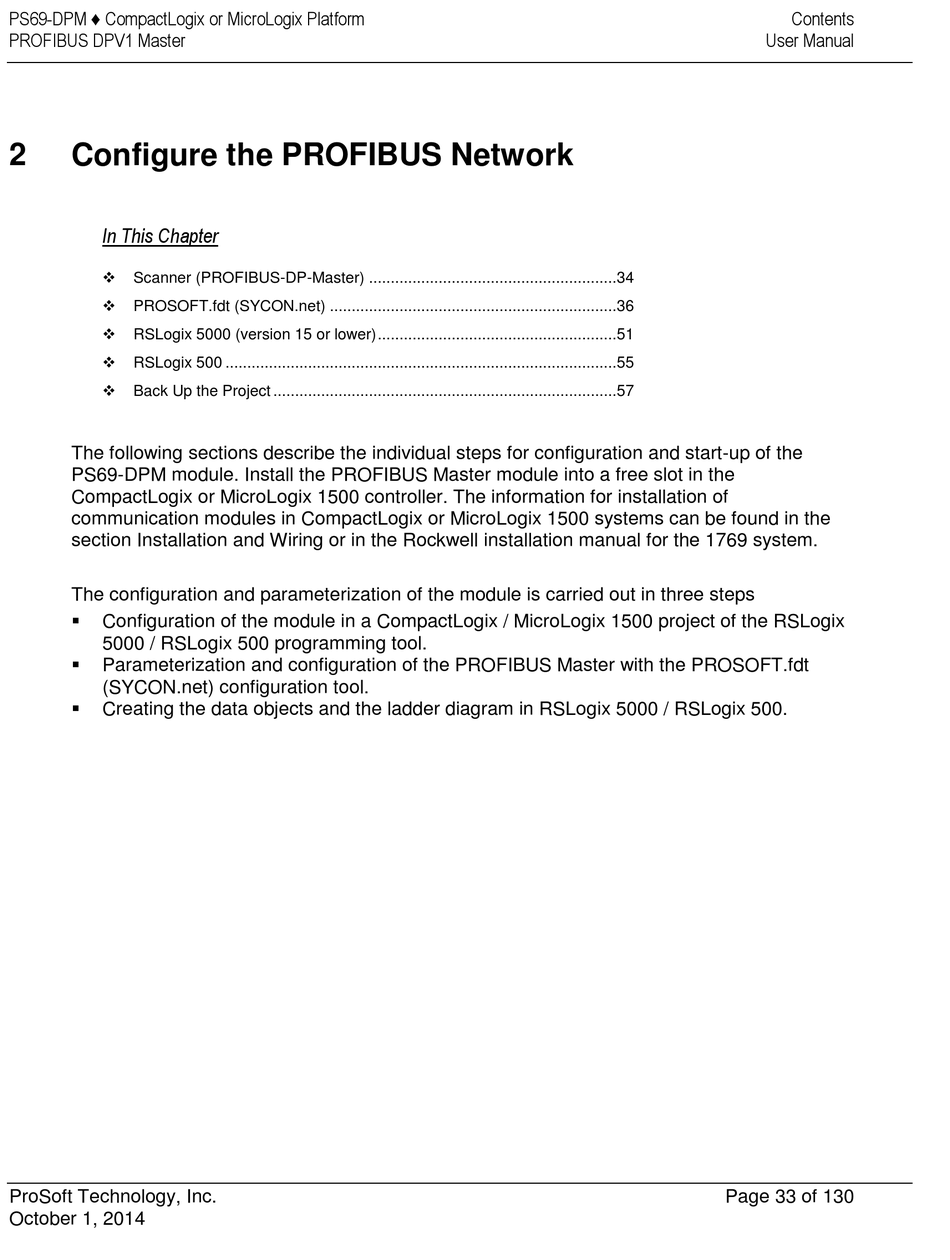

ProSoft Technology PS69-DPM User Manual page 33

PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
2 Configure the PROFIBUS Network
In This Chapter

Scanner (PROFIBUS-DP-Master) .........................................................34

PROSOFT.fdt (SYCON.net) ..................................................................36

RSLogix 5000 (version 15 or lower) .......................................................51

RSLogix 500 ..........................................................................................55

Back Up the Project ...............................................................................57
The following sections describe the individual steps for configuration and start-up of the
PS69-DPM module. Install the PROFIBUS Master module into a free slot in the
CompactLogix or MicroLogix 1500 controller. The information for installation of
communication modules in CompactLogix or MicroLogix 1500 systems can be found in the
section Installation and Wiring or in the Rockwell installation manual for the 1769 system.
The configuration and parameterization of the module is carried out in three steps

Configuration of the module in a CompactLogix / MicroLogix 1500 project of the RSLogix
5000 / RSLogix 500 programming tool.

Parameterization and configuration of the PROFIBUS Master with the PROSOFT.fdt
(SYCON.net) configuration tool.

Creating the data objects and the ladder diagram in RSLogix 5000 / RSLogix 500.
