ProSoft Technology PS69-DPM User Manual page 47

PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
2.2.5 Project Download
Important: Before you download the project, you must change the processor to PROG mode. You cannot
download the project to the PS69-DPM module while the processor is in RUN mode".
Once saved your project is now ready to be downloaded to the Module. Connect the serial
port of your PC to the Diagnostic port on the front of the Master module using supplied
interface cable (CABLE-SRV-MD8). Follow the steps below to download your project.

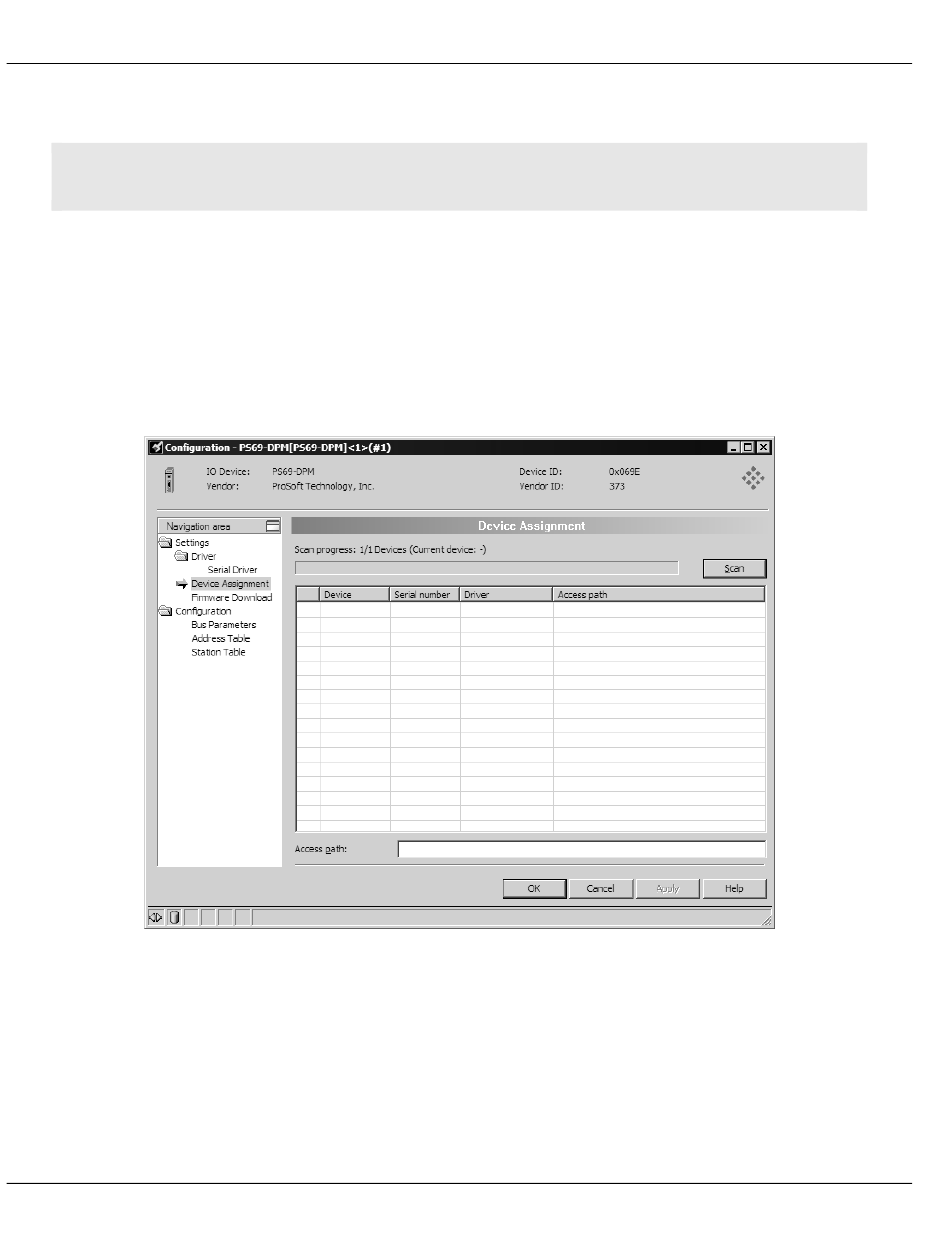

Step1: Device Assignment
In the PROSOFT.fdt (SYCON.net) project screen, double-click on the Master you have
added in either the Network View bus or the netProject screen, the Master should be
highlighted with a Blue box. In the navigation area on the left of the Configuration dialog box,
select Device Assignment.
