Contents
User Manual

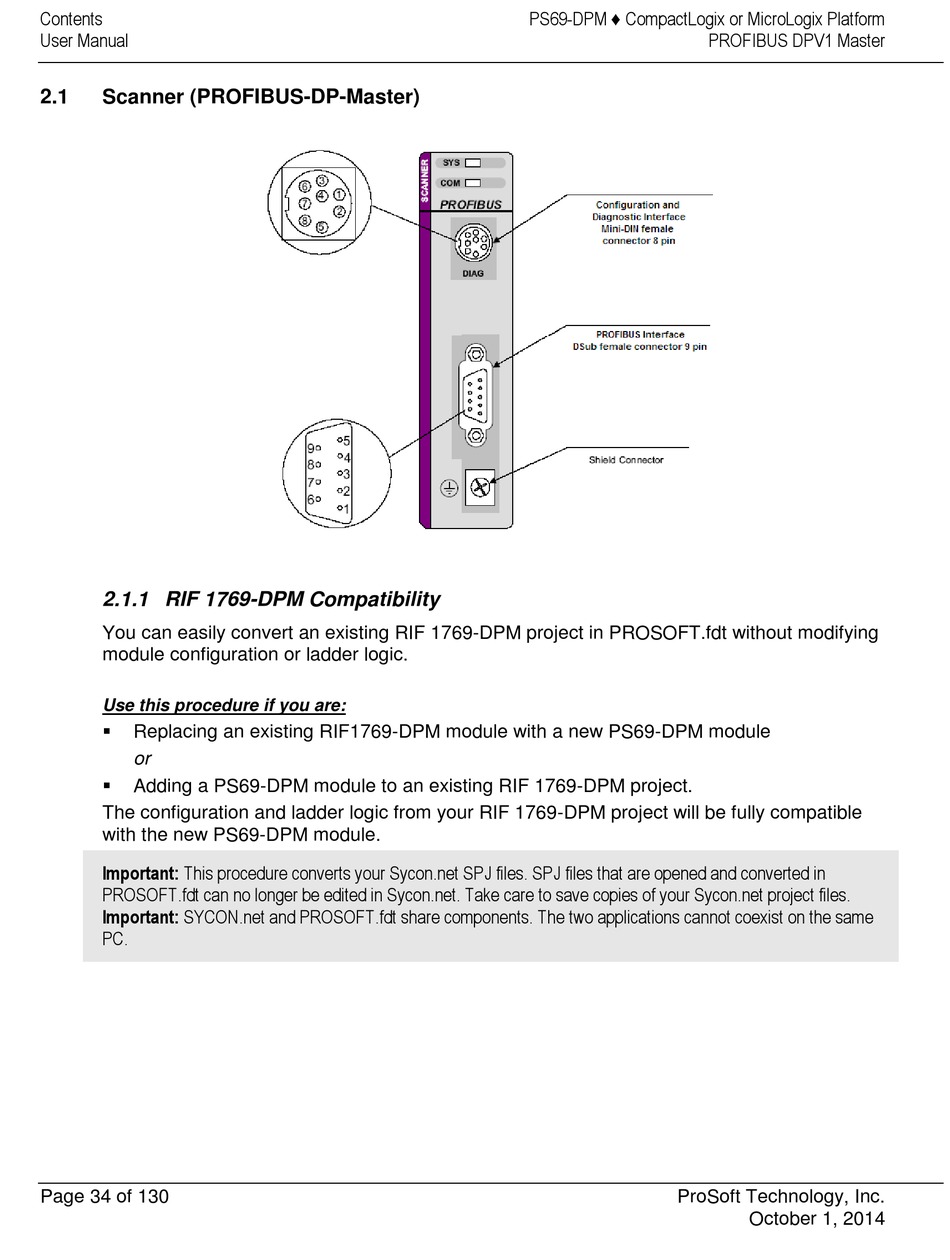

2.1 Scanner (PROFIBUS-DP-Master)
2.1.1 RIF 1769-DPM Compatibility
You can easily convert an existing RIF 1769-DPM project in PROSOFT.fdt without modifying
module configuration or ladder logic.
Use this procedure if you are:

Replacing an existing RIF1769-DPM module with a new PS69-DPM module
or

Adding a PS69-DPM module to an existing RIF 1769-DPM project.
The configuration and ladder logic from your RIF 1769-DPM project will be fully compatible
with the new PS69-DPM module.
Important: This procedure converts your Sycon.net SPJ files. SPJ files that are opened and converted in
PROSOFT.fdt can no longer be edited in Sycon.net. Take care to save copies of your Sycon.net project files.
Important: SYCON.net and PROSOFT.fdt share components. The two applications cannot coexist on the same
PC.
Page 34 of 130
PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
ProSoft Technology, Inc.
October 1, 2014
