1.10 Downloading the Sample Program to the Processor
Note: The key switch on the front of the CompactLogix processor must be in the REM or PROG position.
1 If you are not already online to the processor, open the C
then choose D

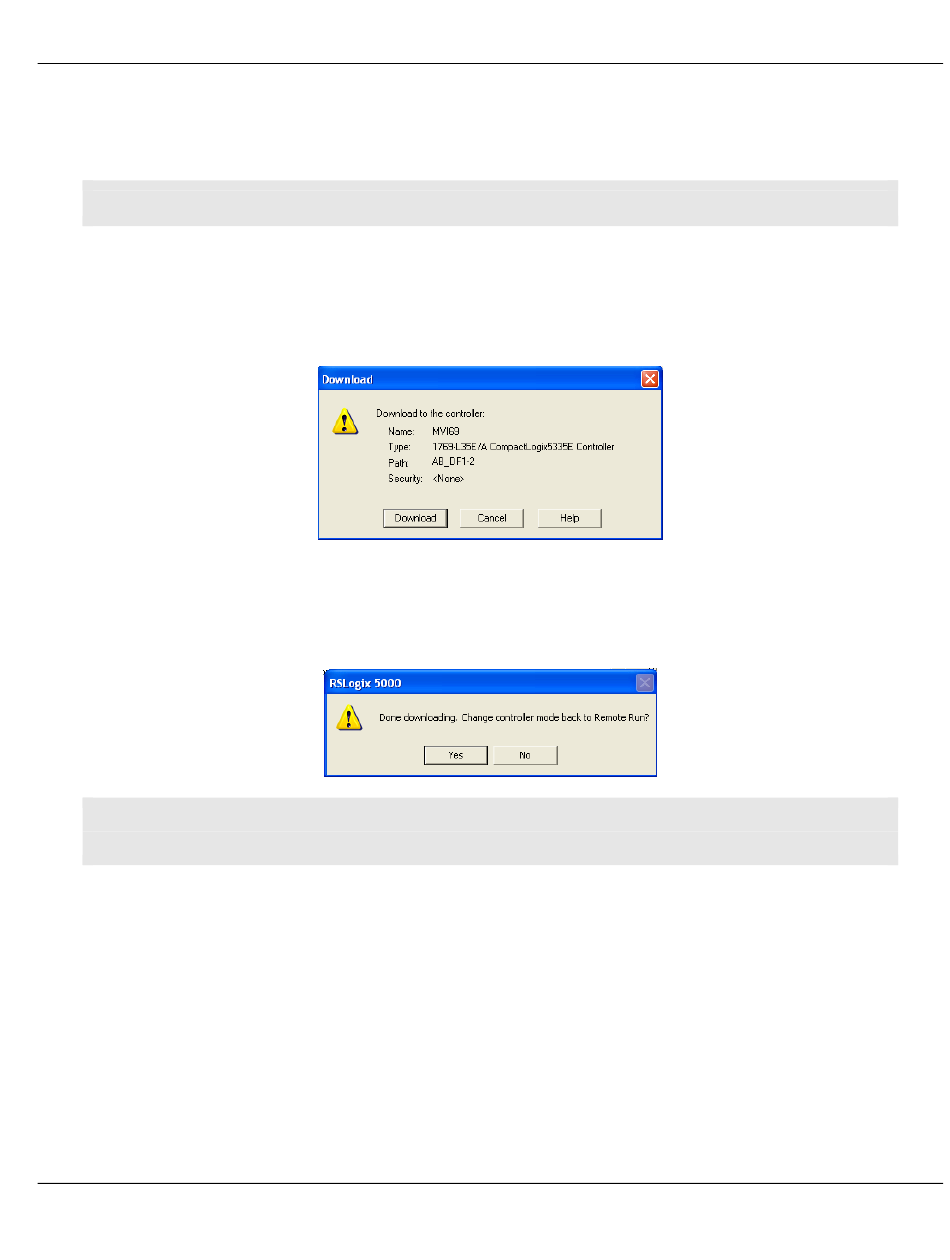

2 When communication is established, RSLogix will open a confirmation dialog box. Click
the D
OWNLOAD
3 RSLogix will compile the program and transfer it to the processor. This process may take
a few minutes.
4 When the download is complete, RSLogix will open another confirmation dialog box.
Click OK to switch the processor from PROGRAM mode to RUN mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to interpret and
correct the error.
