5.3 PROSOFT.fdt (SYCON.net) Diagnostics
PROSOFT.fdt (SYCON.net) provides Master or individual Slave diagnostics, as described in
the following sections.
5.3.1 Master Diagnostics
PROSOFT.fdt (SYCON.net) allows you to monitor the operating conditions of the
PROFIBUS Master via the serial port. To use this diagnostic functionality open your project
in PROSOFT.fdt (SYCON.net). In the PROSOFT.fdt (SYCON.net) project screen, right click
on the Master in either the Network View bus or the netProject screen. From the context
menu, select Connect. The text above the Master should be highlighted in Green. Double

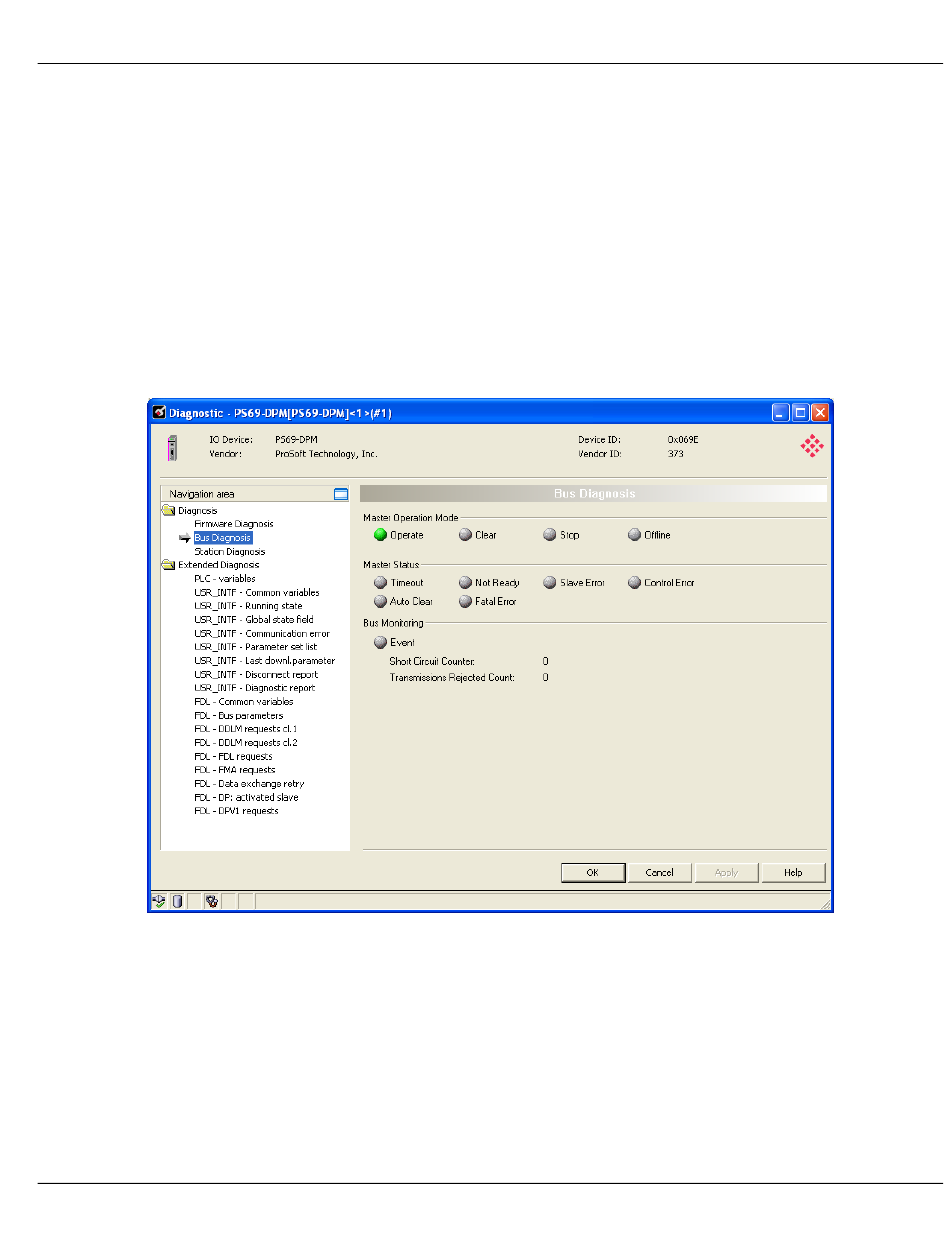

click on the Master in either the Network View bus or the netProject screen. The following
diagnostic dialogs should appear.
