2.3.3 Module Properties 2

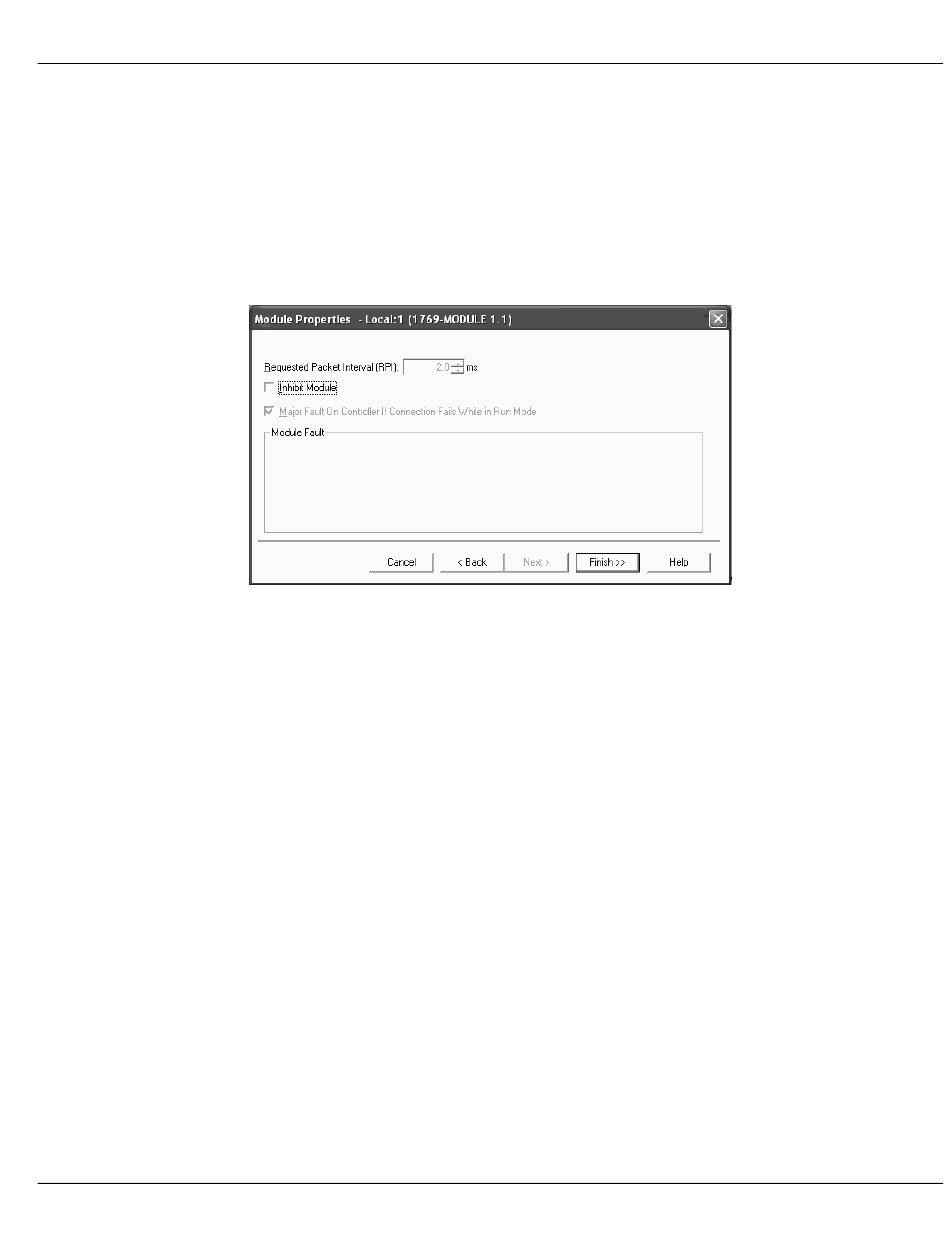

The Requested Packet Interval RPI is shown in the following dialog box. Within this time
interval, the I/O data between module and controller are exchanged.
It is not possible to change the RPI in this dialog separately for each module. The RPI can
be changed in the properties dialog of the
"CompactBus Local" for all I/O modules. Values in 1.0 ms steps are possible. The
PROFIBUS module supports all possible RPI values.
End the configuration of the module with Finish>>.
