1.8.3 Import the Ladder Rung
1 Open your application in RSLogix 5000.
2 To create a new routine, expand the T
folder.
3 On the Main Program folder, click the right mouse button to open a shortcut menu. On
the shortcut menu, choose N
4 In the New Routine dialog box, enter the name and description of your routine, and then
click OK. In this example we are demonstrating the importing of the ladder rung using
the default MainRoutine. In the case where you create a routine by an other name for
placing the Add-On instruction, then in your original routine where your other ladder logic
is located you need to add a rung with a jump instruction to the new routine holding the
Add-On instruction.

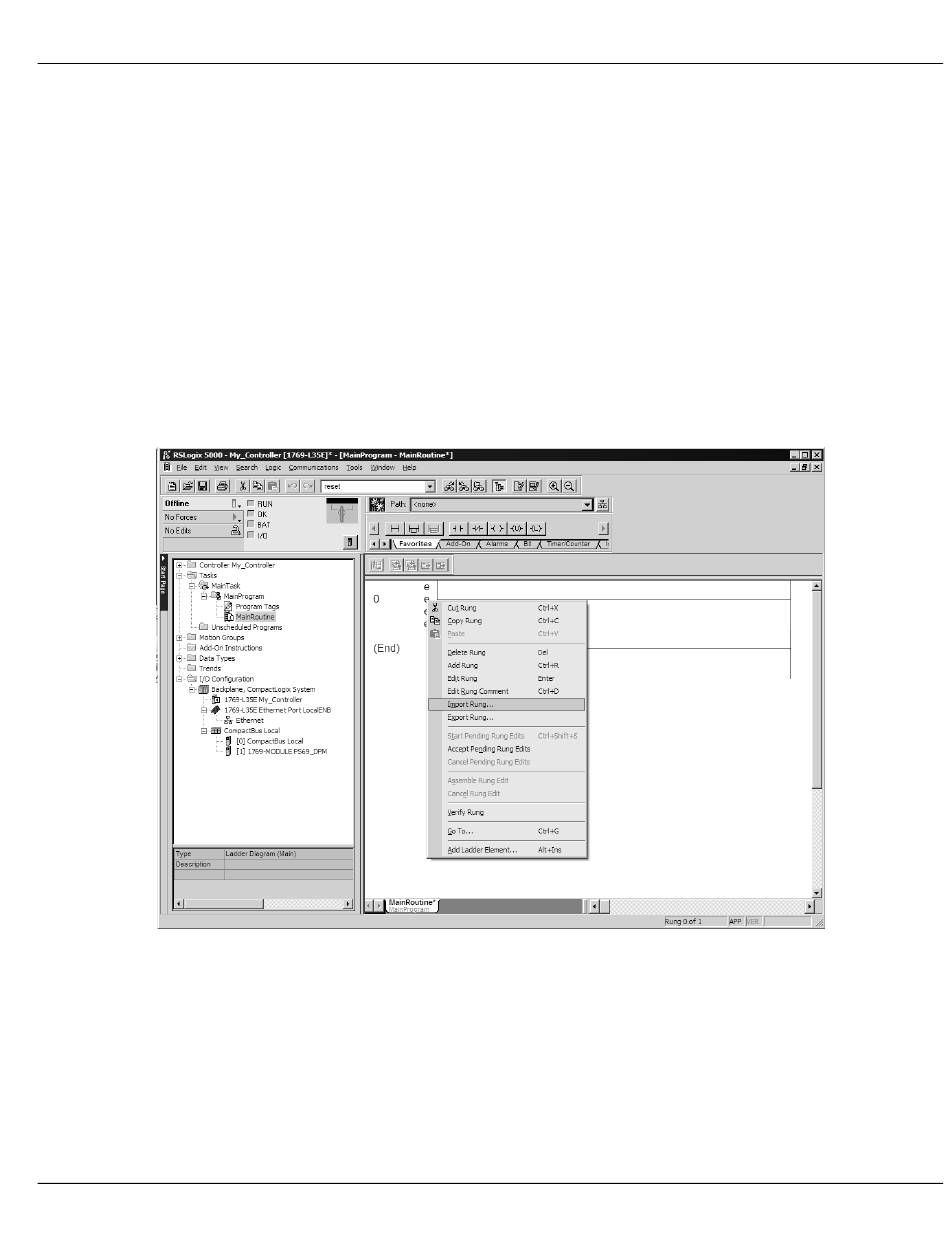

5 Select an empty rung in the new routine, and then click the right mouse button to open a
