PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
1.9
Connecting Your PC to the Processor
1

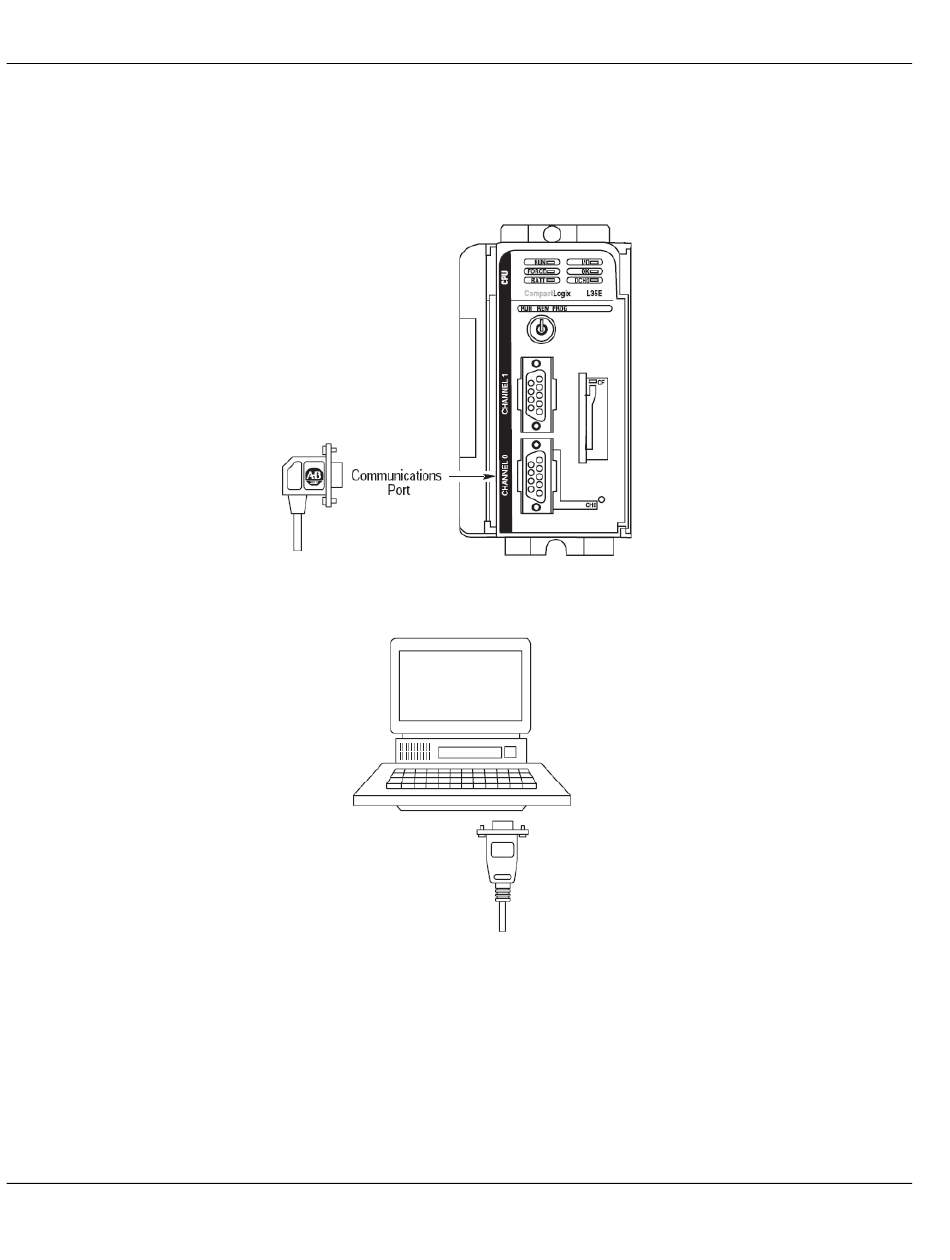

Connect the right-angle connector end of the cable to your controller at the
communications port.
2
Connect the straight connector end of the cable to the serial port on your computer.
ProSoft Technology, Inc.
October 1, 2014
