PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
Note: You must create two user defined data types to send and receive the information for this command
message. In this example SlaveDiagReq and SlaveDiagCnf were created to hold the command specific
information.

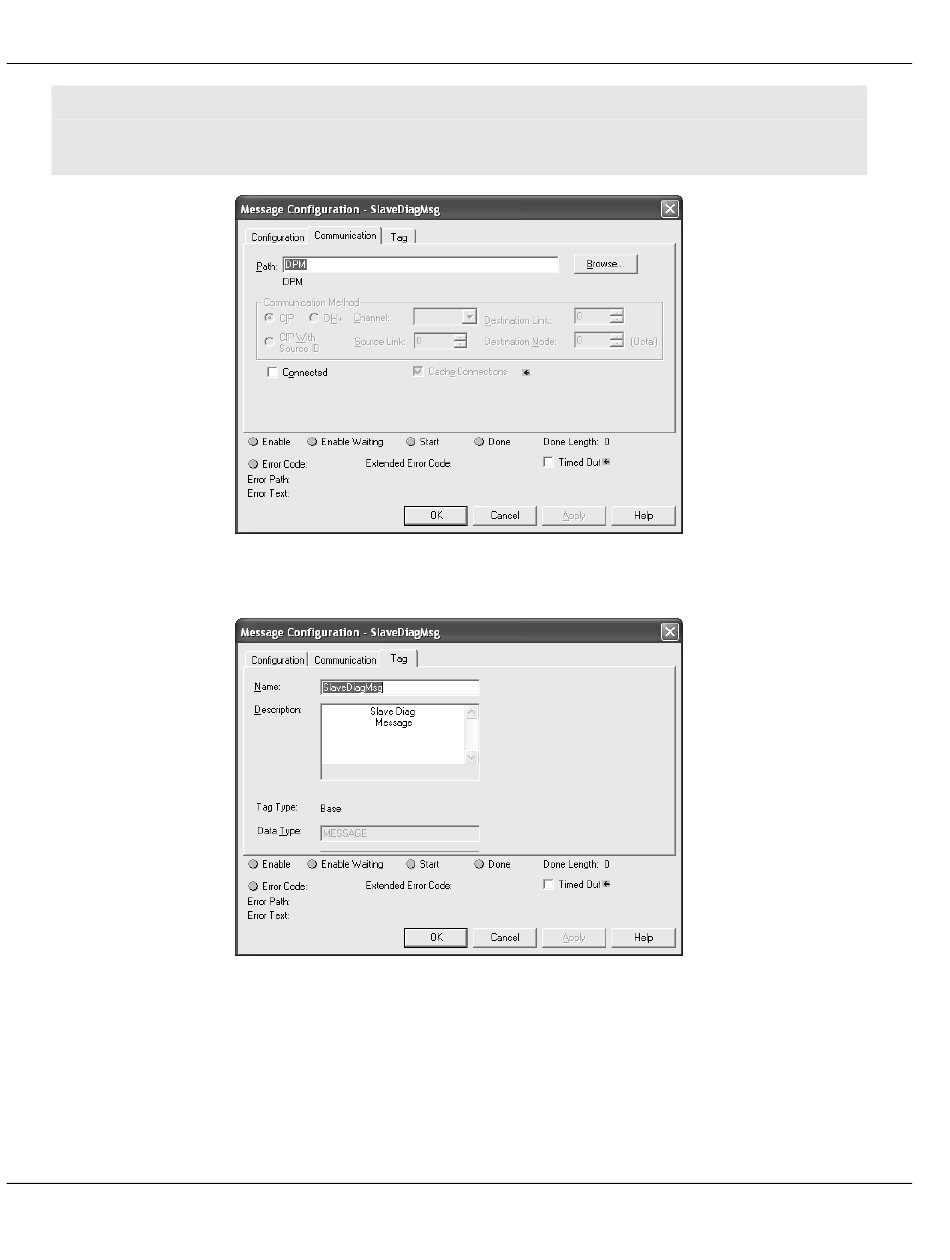

The path in the dialog above must point to the 1769-Module. Use the Browse button to
select the path.
ProSoft Technology, Inc.
October 1, 2014
Contents
User Manual
Page 75 of 130
