Address Table

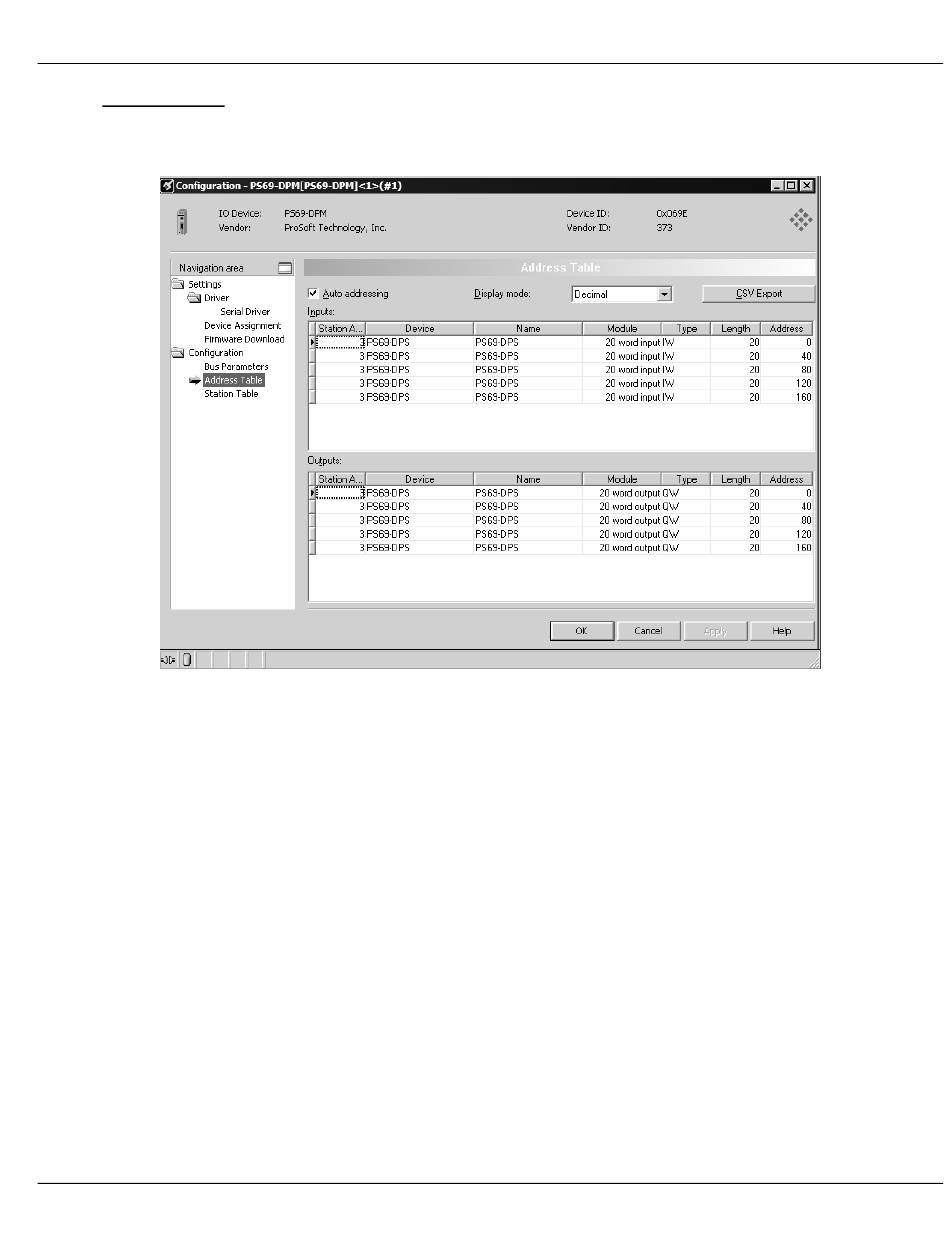

Select Address Table in the navigation area. The dialog will appear as shown in the
following illustration.
The Address Table describes the Slaves configured and their dual port memory offsets for
input and output data. You do not have to change anything in this setup screen as long as
the Enable Auto Addressing checkbox is checked. If unchecked, you can change the offsets
manually.
