Contents
User Manual
Note: It is not necessary to create a completely new routine. It is possible to add the PS69-DPM_2 module in the
previously created routine. If you need to create a new routine, insert a jump instruction in the previous routine to
the new routine.

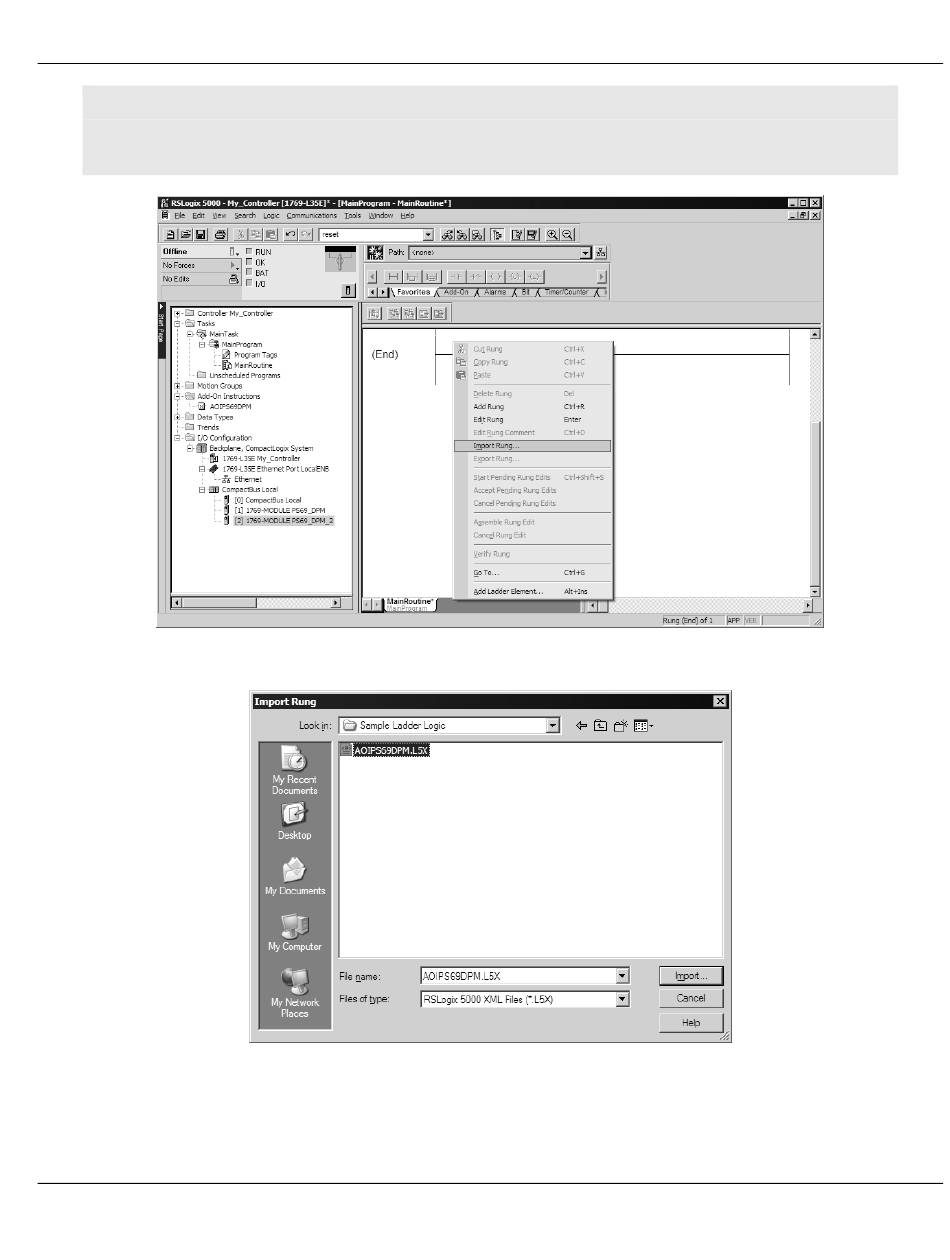

8 Select the AOIPS69DPM.L5X file
