PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
2.2.3 Configuration of the PS69-DPM Master

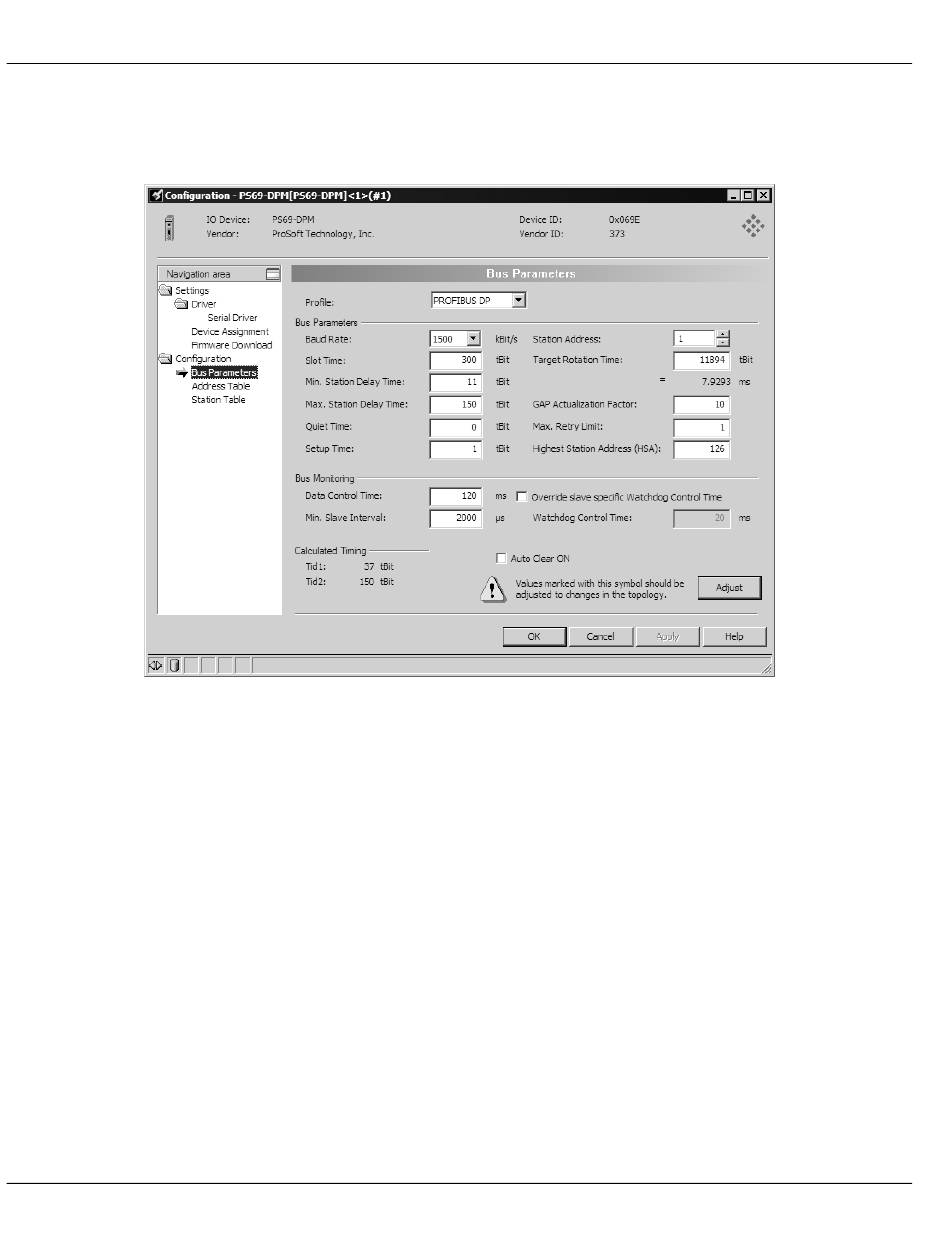

Double click on the Master that appears in the Network View or the netProject window. In
the navigation area on the left side of the Configuration dialog box, select Bus Parameters.
Select the Baud Rate and Station Address for your Master. The rest of the settings do not
need adjustment and should be automatically calculate when changing the Baud Rate
setting. The default settings cover the most of cases.
Under some circumstances it might be necessary to adjust these values. If these settings
need to be changed, please refer to the Operating Instruction Manual for "DTM for
PROFIBUS Master Devices" for the meaning of these values and proper settings.
