User Manual
This dialog box is a warning regarding a possible interruption of the bus communication

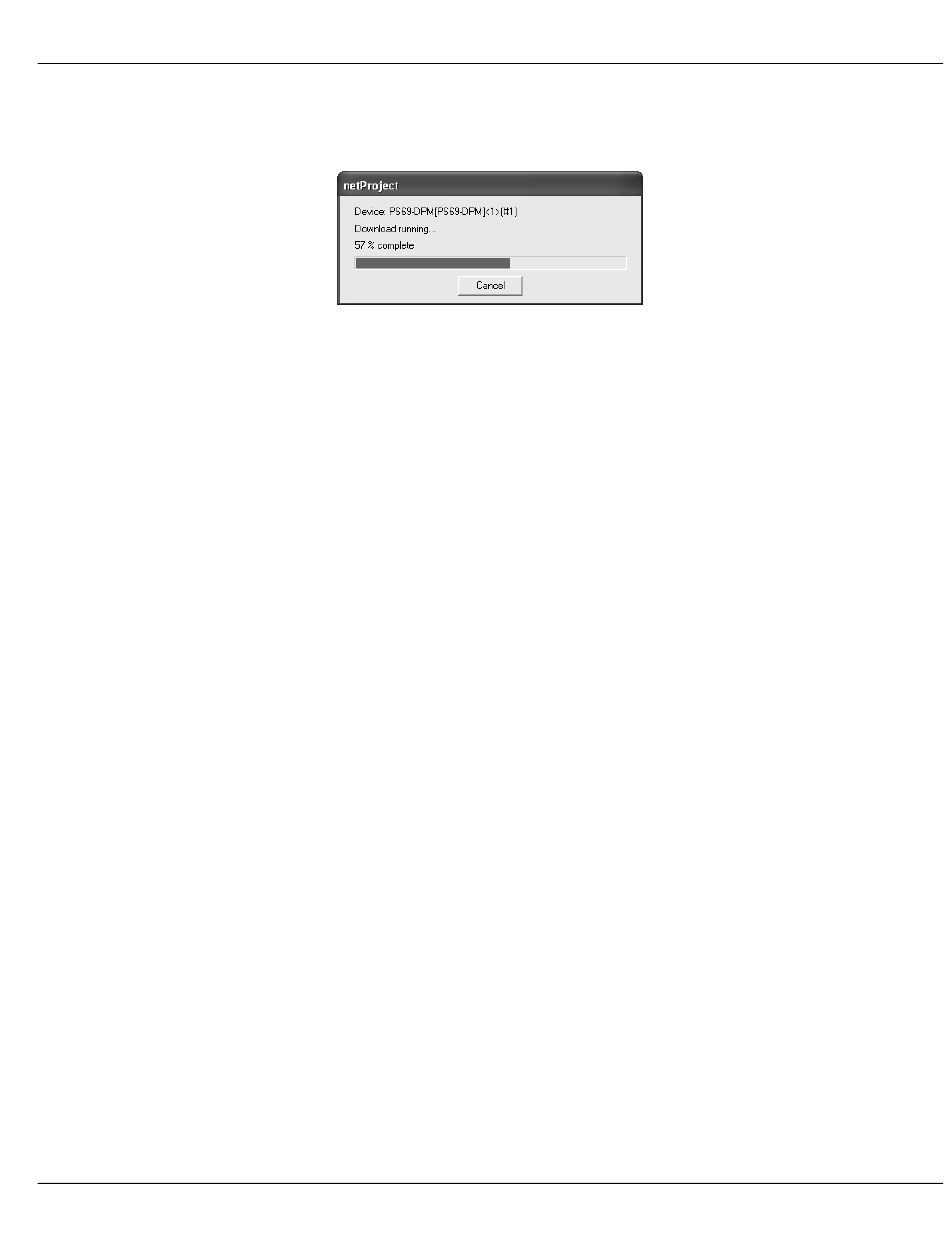

during the download. Click Yes to begin the download. The download progress dialog box
will appear.
Step 4 - Set Processor to Run Mode
After the download has been completed, all required steps configuring the Master module
have been done.
Page 50 of 130
PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
ProSoft Technology, Inc.
October 1, 2014
