PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master

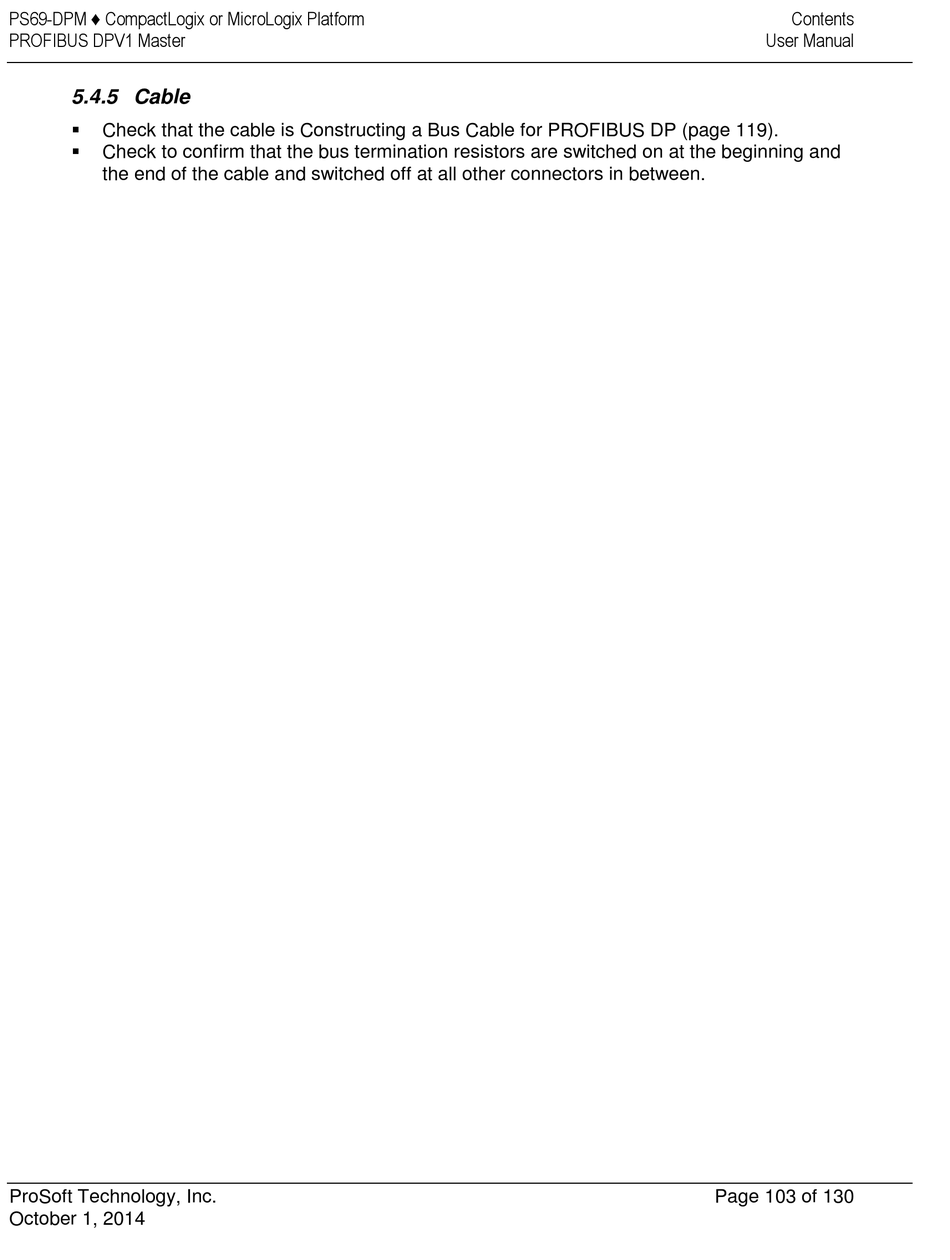

5.4.5 Cable

Check that the cable is Constructing a Bus Cable for PROFIBUS DP (page 119).

Check to confirm that the bus termination resistors are switched on at the beginning and
the end of the cable and switched off at all other connectors in between.
ProSoft Technology, Inc.
October 1, 2014
Contents
User Manual
Page 103 of 130
