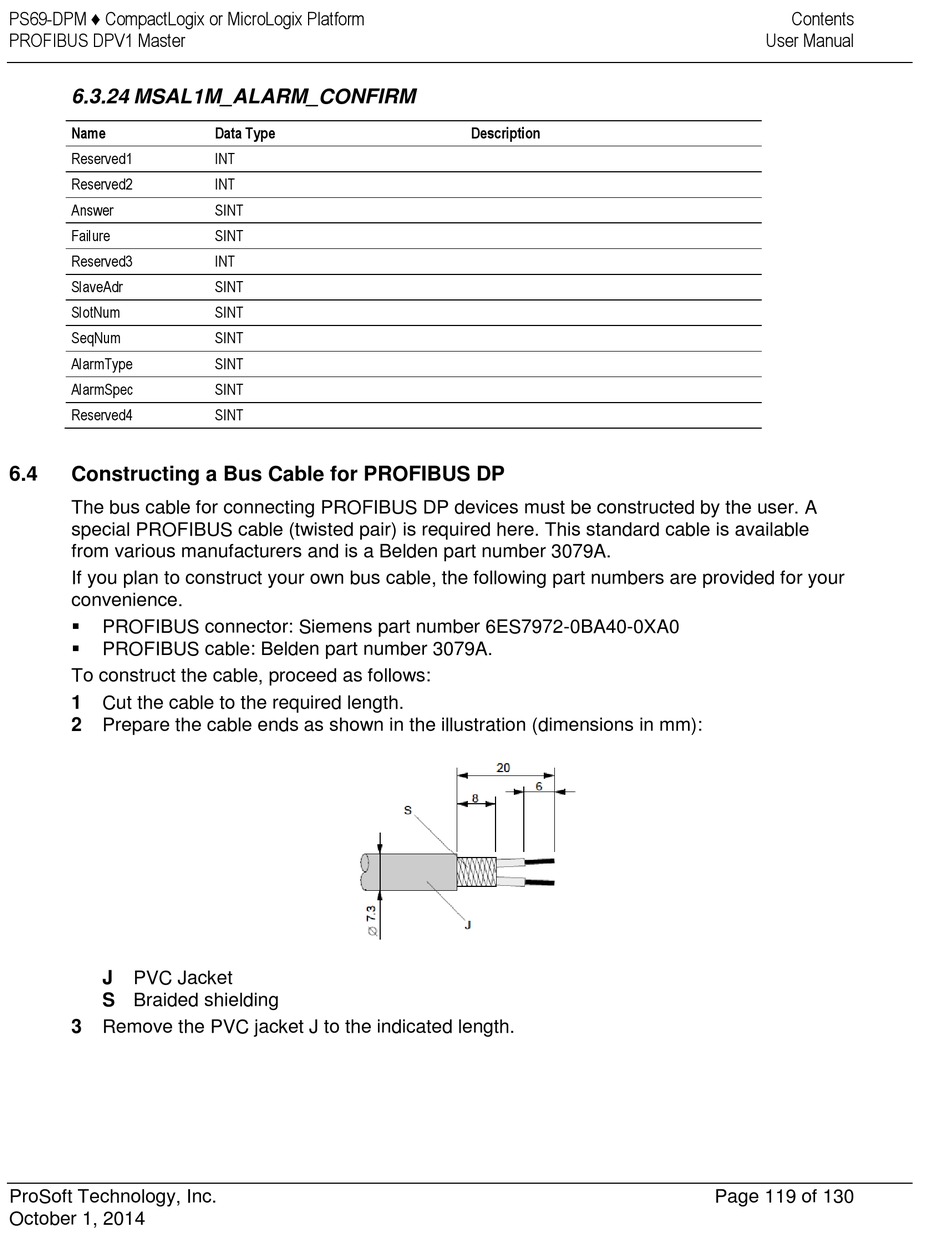

ProSoft Technology PS69-DPM User Manual page 119

PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
6.3.24 MSAL1M_ALARM_CONFIRM
Name
Reserved1
Reserved2
Answer
Failure
Reserved3
SlaveAdr
SlotNum
SeqNum
AlarmType
AlarmSpec
Reserved4
6.4 Constructing a Bus Cable for PROFIBUS DP
The bus cable for connecting PROFIBUS DP devices must be constructed by the user. A
special PROFIBUS cable (twisted pair) is required here. This standard cable is available
from various manufacturers and is a Belden part number 3079A.
If you plan to construct your own bus cable, the following part numbers are provided for your
convenience.

PROFIBUS connector: Siemens part number 6ES7972-0BA40-0XA0

PROFIBUS cable: Belden part number 3079A.
To construct the cable, proceed as follows:
1 Cut the cable to the required length.
2 Prepare the cable ends as shown in the illustration (dimensions in mm):
J PVC Jacket
S Braided shielding
3 Remove the PVC jacket J to the indicated length.
ProSoft Technology, Inc.
October 1, 2014
Data Type
INT
INT
SINT
SINT
INT
SINT
SINT
SINT
SINT
SINT
SINT
Description
Contents
