ProSoft Technology PS69-DPM User Manual page 41

PS69-DPM ♦ CompactLogix or MicroLogix Platform
PROFIBUS DPV1 Master
Station Table

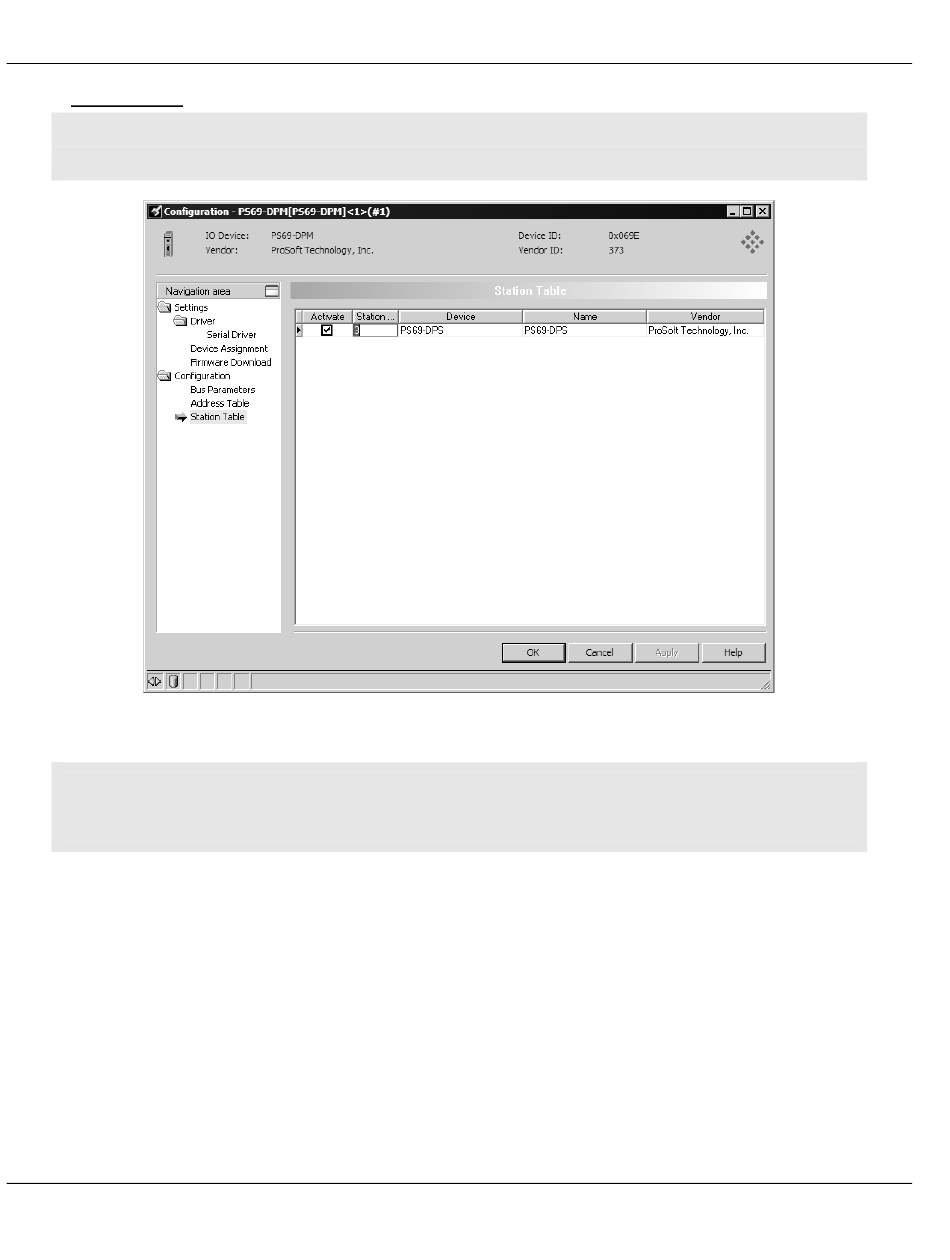

Note: The following illustration shows how to change the bus address for a Slave. This dialog box is the only
place that allows you to change the slave address.
Complete the process click the OK or Apply button and close the dialog box. The Master
settings are now complete.
Note: The slave offset addresses shown here are not the same you will find in the PLC memory. You have to
add 44 words the Input address (to allow space for the Status Information area) and 8 words to the Output
address (to allow space for the Command Information area). See IO Arrays Overview for details.
