7.2.11 X Flexible Cable

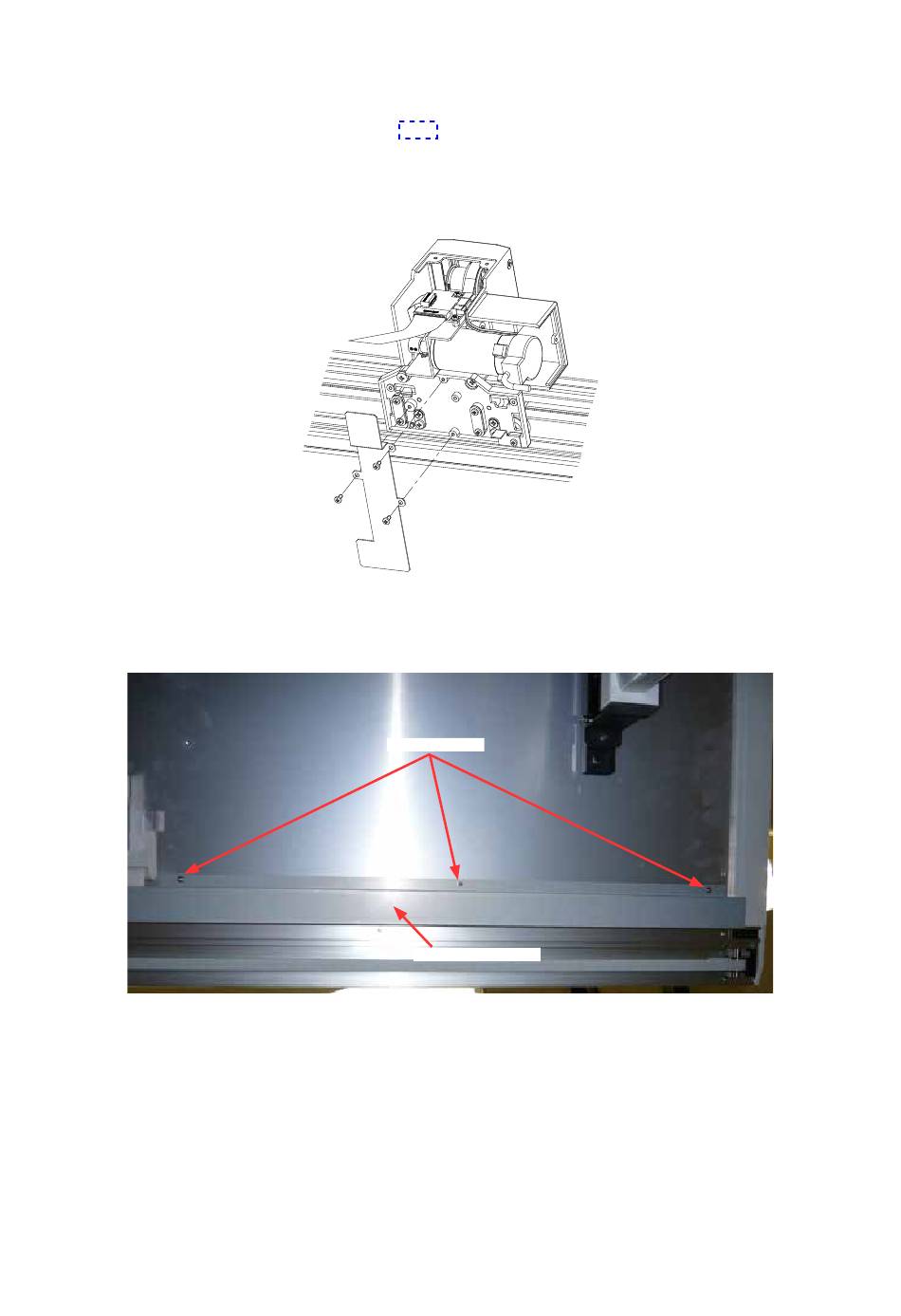

How to detach the X flexible cable
(1) Detach the Y motor cover (See the section 7.1.7).
(2) Disconnect X flexible cable from connector on the X-Y relay board.
(3) Remove the three M3 binding head screws holding the X flexible cable bracket, then detach the X
flexible cable bracket.
(4) Detach the X flexible cable from the X flexible cable bracket.
(5) Remove the three M3L10 TP screws holding the X flexible cable guide, then detach the X flexible cable
guide.
FC2250-UM-251-9370
7. DISASSEMBLY AND ADJUSTMENT
M3L10TP screw
X flexible cable guide
7-23
