TRANSPORT
6.2.2

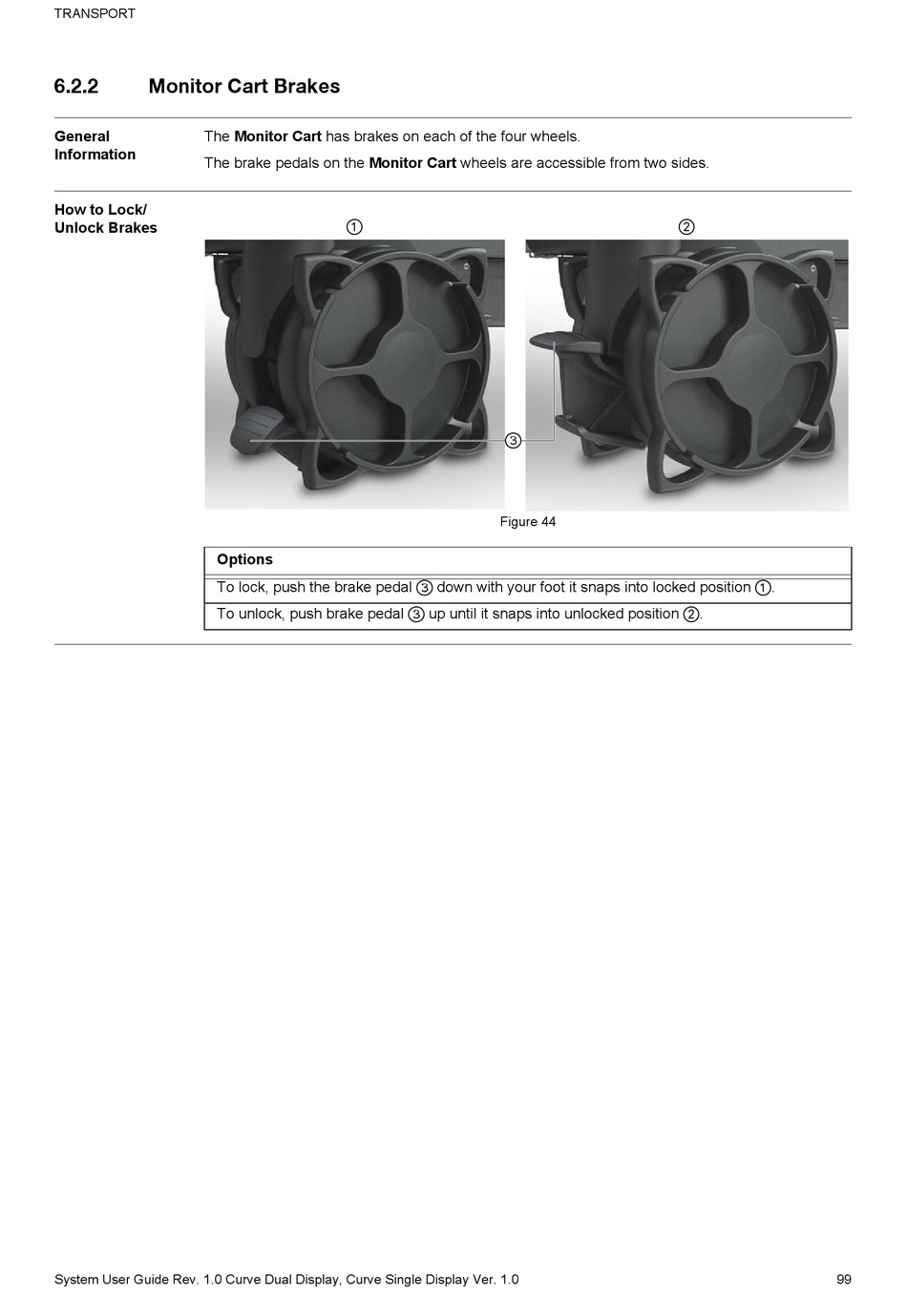

Monitor Cart Brakes
General
The Monitor Cart has brakes on each of the four wheels.
Information
The brake pedals on the Monitor Cart wheels are accessible from two sides.
How to Lock/
Unlock Brakes
Options
To lock, push the brake pedal
To unlock, push brake pedal
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
a
d
Figure 44
down with your foot it snaps into locked position
d
up until it snaps into unlocked position
d
s
.
a
.
s
99
