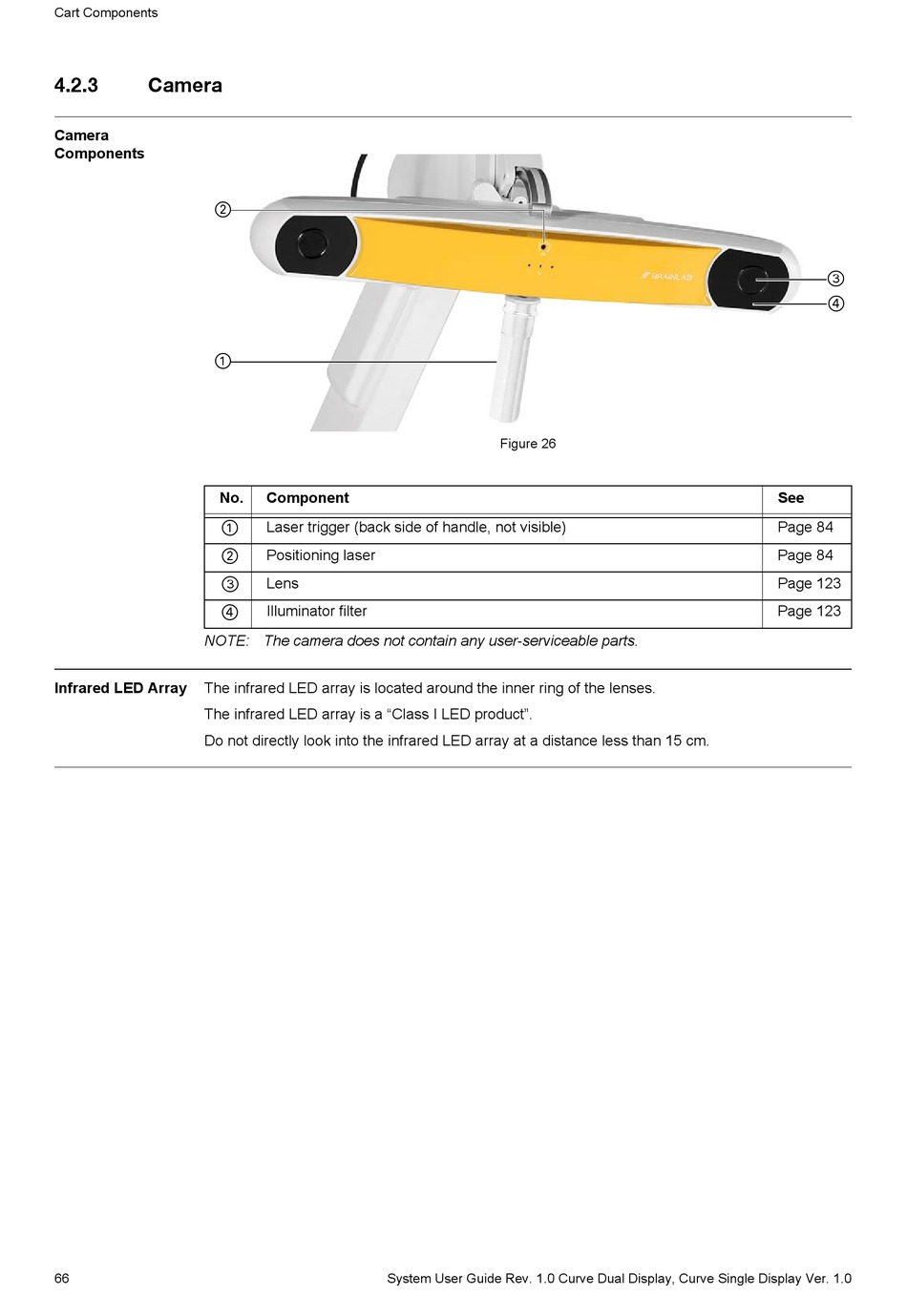

Cart Components
4.2.3
Camera
Camera
Components
s
a
No.
a
s
d
f
NOTE: The camera does not contain any user-serviceable parts.
Infrared LED Array
The infrared LED array is located around the inner ring of the lenses.
The infrared LED array is a "Class I LED product".
Do not directly look into the infrared LED array at a distance less than 15 cm.
66
Component
Laser trigger (back side of handle, not visible)
Positioning laser
Lens
Illuminator filter
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
Figure 26
d
f
See
Page 84
Page 84
Page 123
Page 123
