Sound Panel

Before Use The following devices are compatible for use with the sound panel:
• iPod touch 2 and 3
• iPhone 3G, 3GS and 4
Further devices may be deemed compatible after the release of this user guide. For questions re-
garding supported devices, contact Brainlab.
NOTE: Any bumper or protective case around the iPhone or iPod touch must be removed before
docking onto the sound panel.
Components
No.
a
s
d
f
g
h
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
Before attaching the MP3 player, always mute the sound system to avoid sudden or
unexpected loud noises and/or startling people in the operating room.
a
Component
Volume controls
Holder clip
NOTE: Only attach the specific device that corresponds with the integrated holder clip. If
you are unsure which device may be used, contact Brainlab support.
Docking station: standard connection for iPhone or iPod touch
Aux-In: Stereo jack for external, battery-powered music source
Mute button
Mute LED (see page 54)

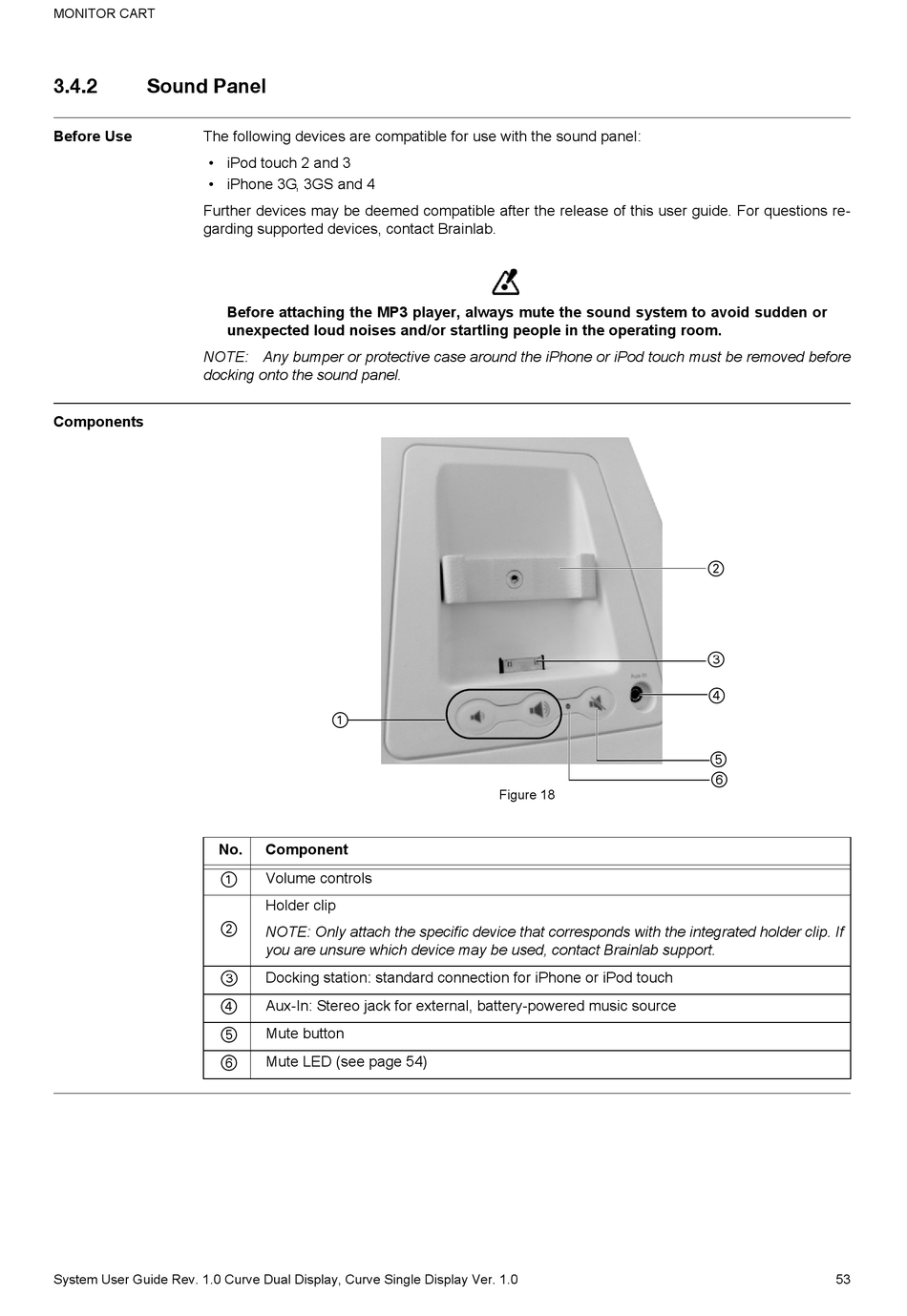

Figure 18
