Docking and Undocking Procedure
How to Dock
Steps

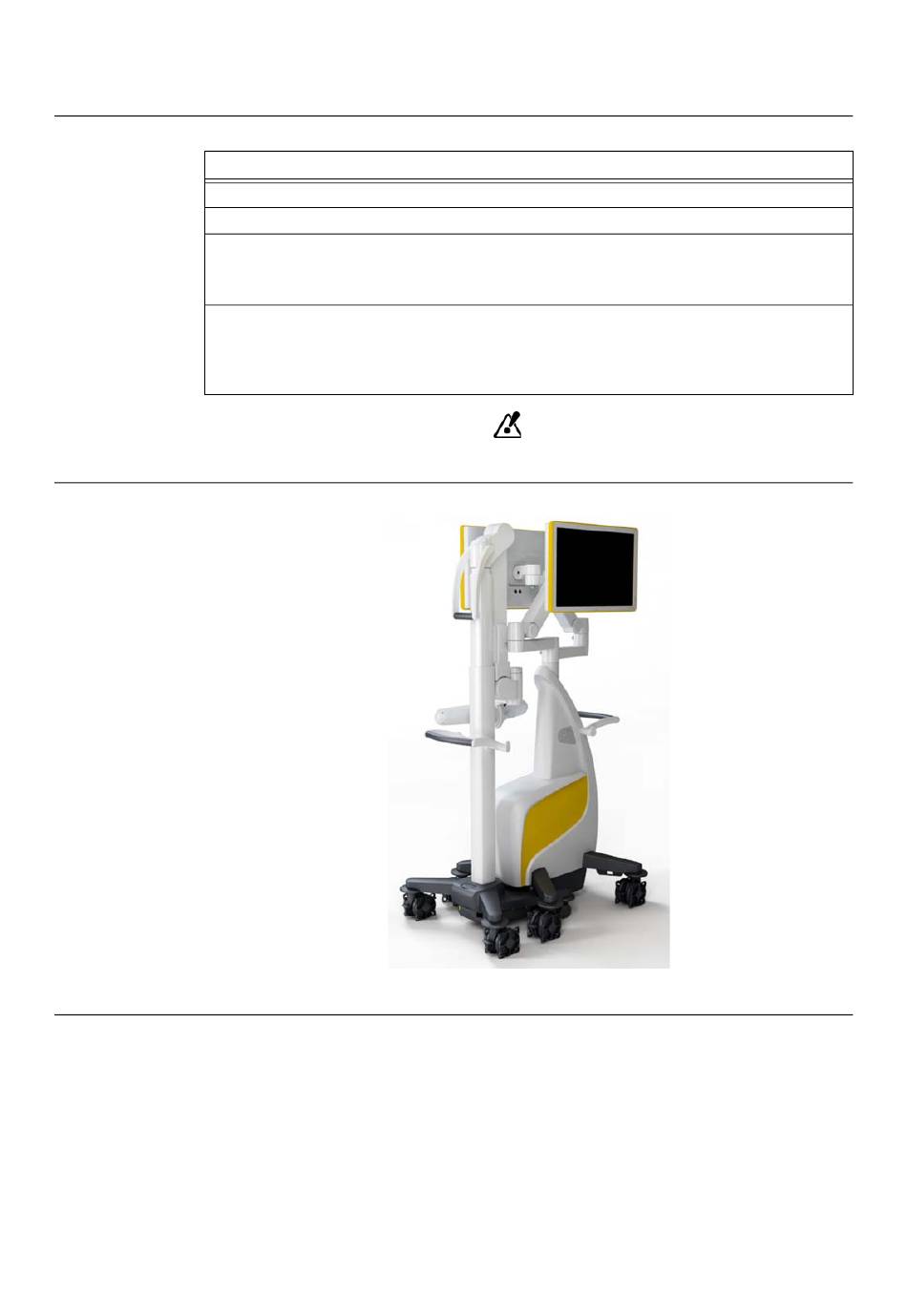

Final Docked
Position - Curve
Dual Display
110
1.
Bring Camera Cart and Monitor Cart into the respective parking positions.
2.
Ensure that the brakes of Monitor Cart are engaged.
3.
Ensure that locking mechanism is open.
If locking mechanism has been unintentionally snapped in, open it by pressing release
pedal downwards (see page 111).
4.
Push Camera Cart into Monitor Cart so that front axle of Camera Cart encloses rear
axle of Monitor Cart until locking mechanism audibly snaps into place.
NOTE: It is recommended to always move the Camera Cart into the Monitor Cart and not
the other way around.
Do not try attempt to dock anything other than the Camera Cart to the Monitor Cart.
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
Figure 52
