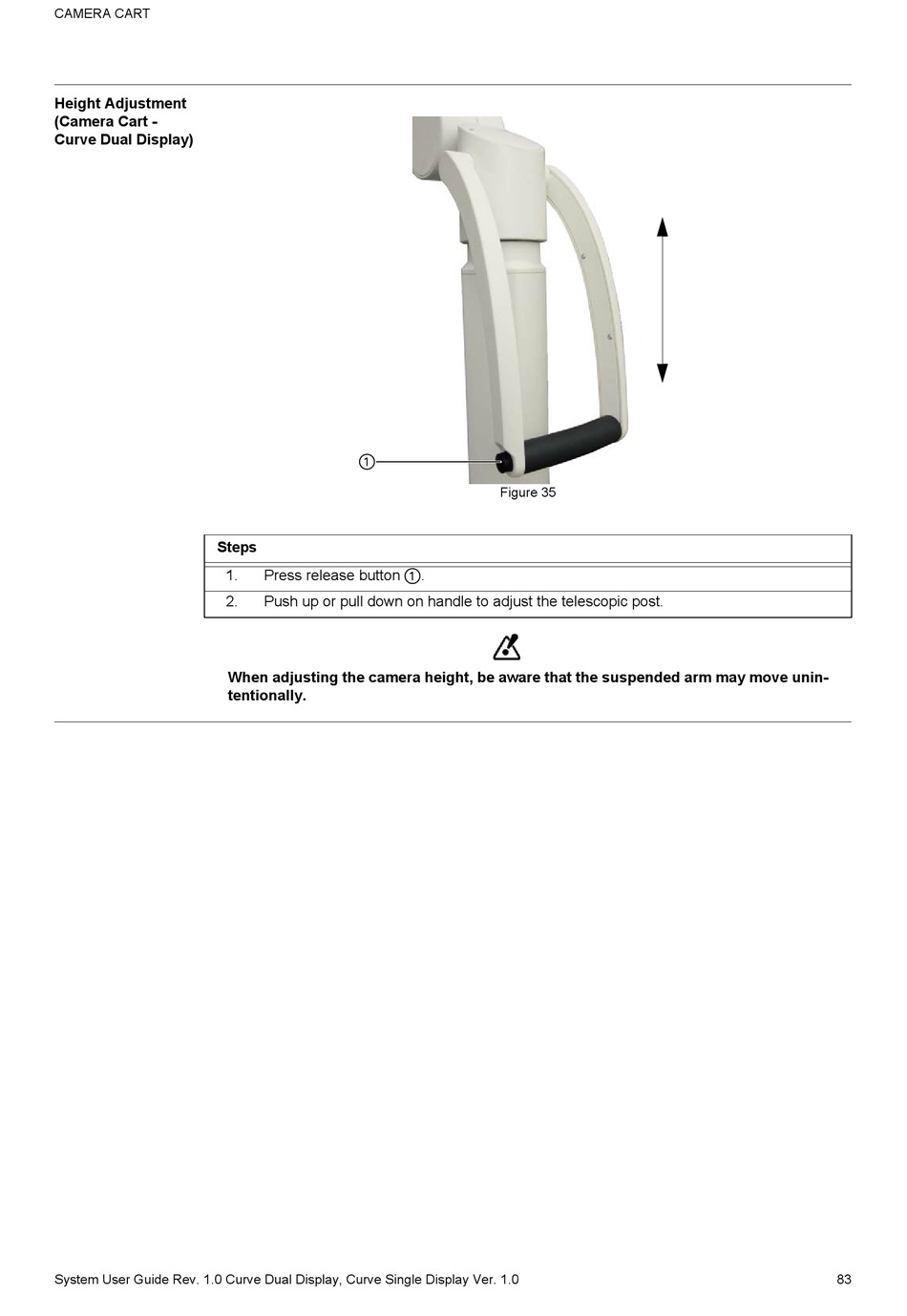

CAMERA CART
Height Adjustment
(Camera Cart -
Curve Dual Display)
Steps
System User Guide Rev. 1.0 Curve Dual Display, Curve Single Display Ver. 1.0
a
1.
Press release button
2.
Push up or pull down on handle to adjust the telescopic post.
When adjusting the camera height, be aware that the suspended arm may move unin-
tentionally.
Figure 35
a
.
83
